Porsche 996 986 M96 Engine Upgraded Oil Pressure Piston Cold Start Kit

A genuine Porsche OE component upgrade kit that addresses one of the most common M96 engine complaints — cold start oil pressure rattle and low RPM oil starvation. All parts are original Porsche equipment, sourced and packaged by PSR9Line into a single, hassle-free kit.

Vehicle Fitment

• Porsche 911 996 Carrera 3.4 & 3.6
• Porsche Boxster 986 — 2.5, 2.7 & 3.2
• Porsche Boxster 987.1 — 2.7 & 3.4 (early build)

What the Upgrade Does

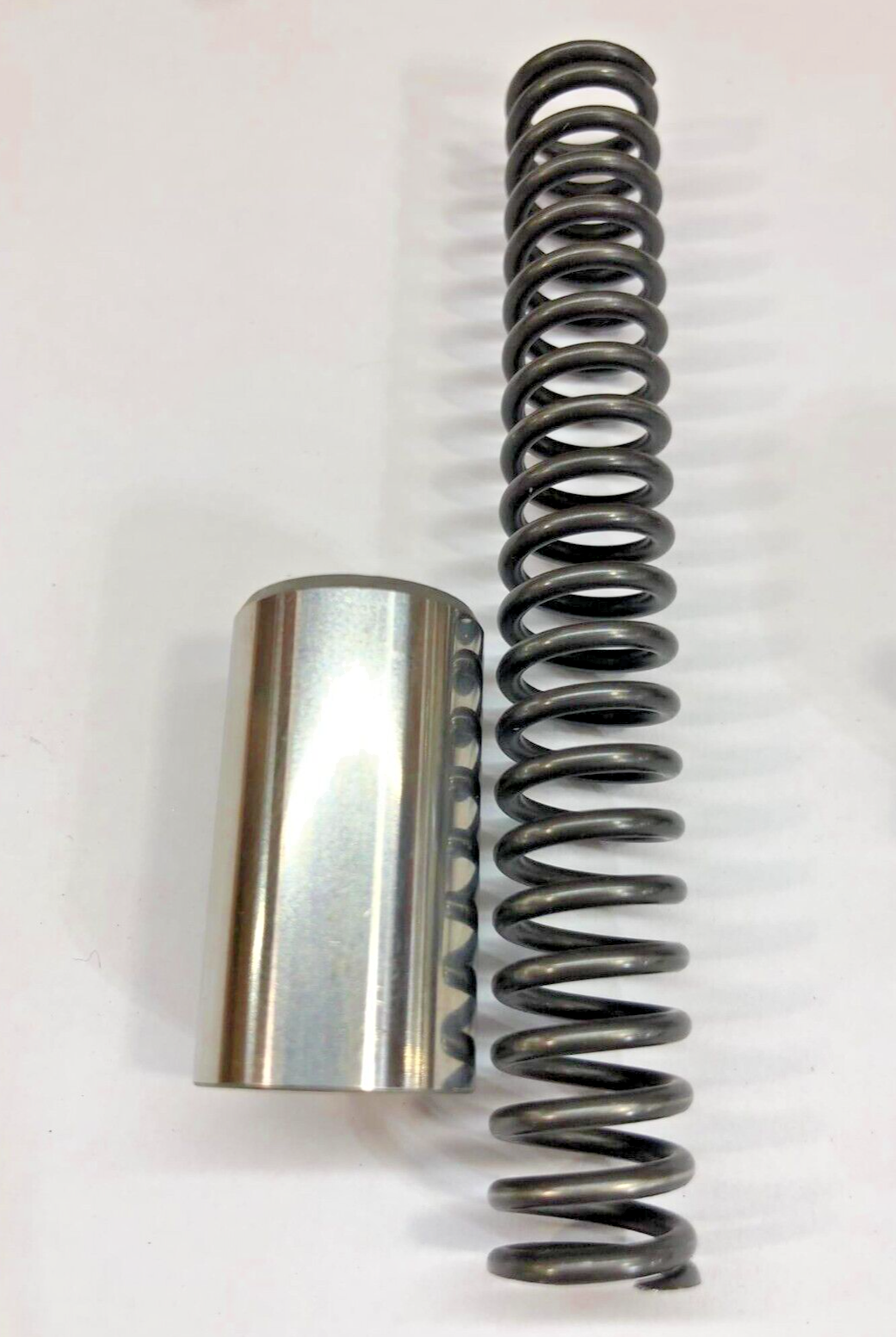

The updated piston features a precision bevelled edge, and the replacement spring is both longer and firmer than the original. Together they improve oil pressure regulation at low RPM and during cold starts — keeping oil circulating before bypass and reducing chain rattle on startup.

Measured Oil Pressure Improvement

• Before: 1.0 – 1.2 bar
• After: 1.5 – 1.8 bar

Higher pressure at startup with cold oil. The stronger spring also improves lubrication during high-G cornering, where the pump begins to bypass at exactly the right moment.

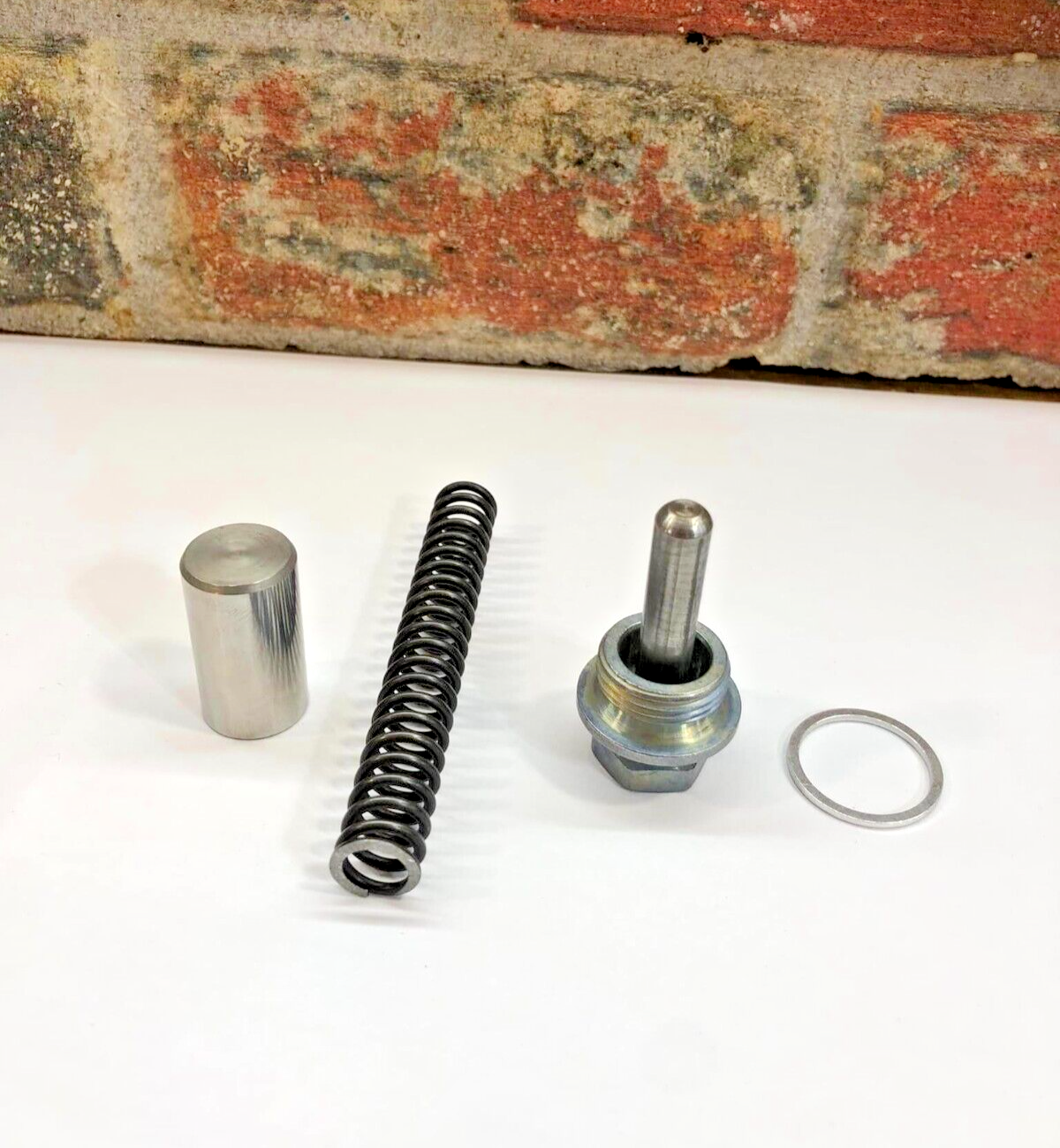

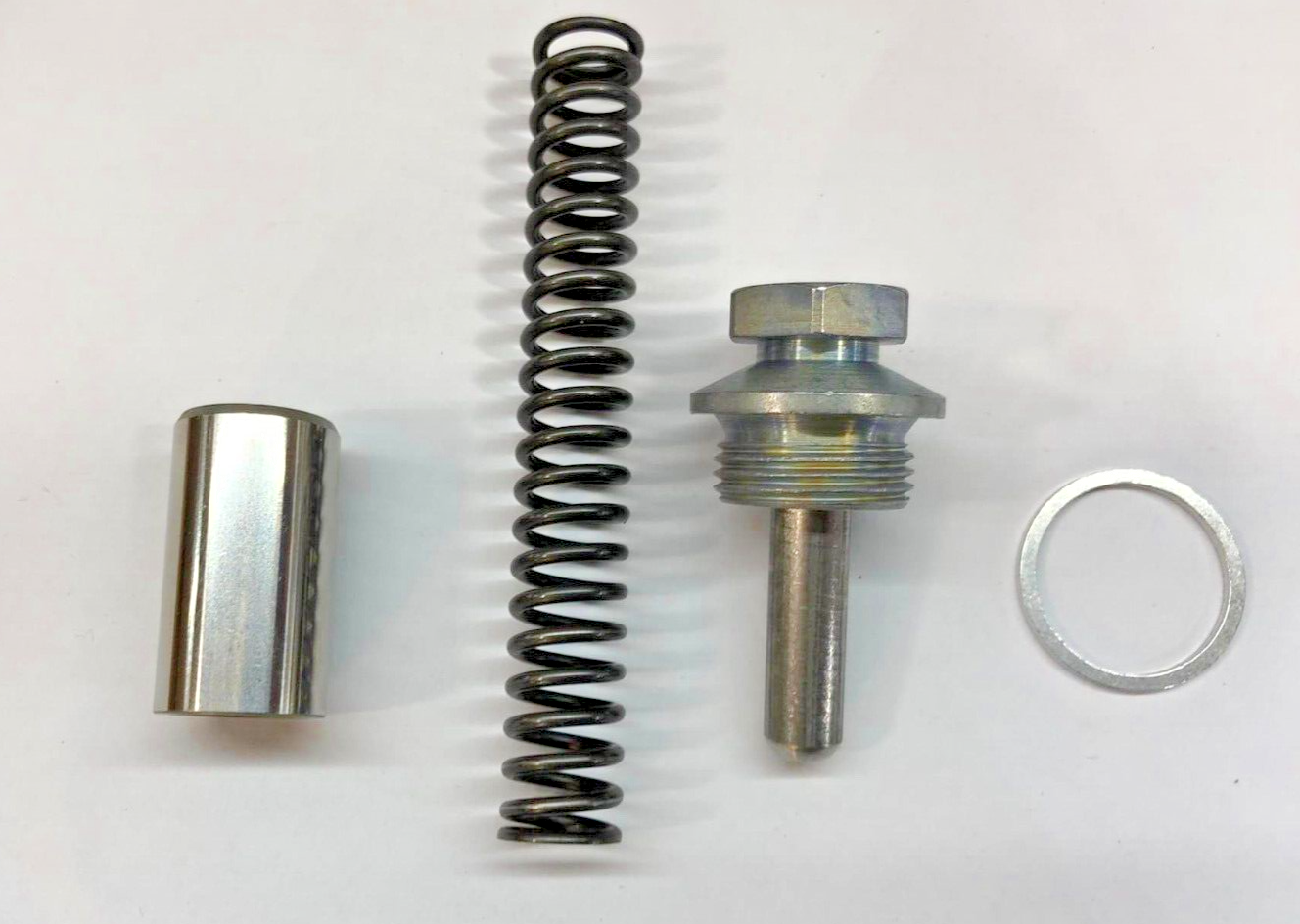

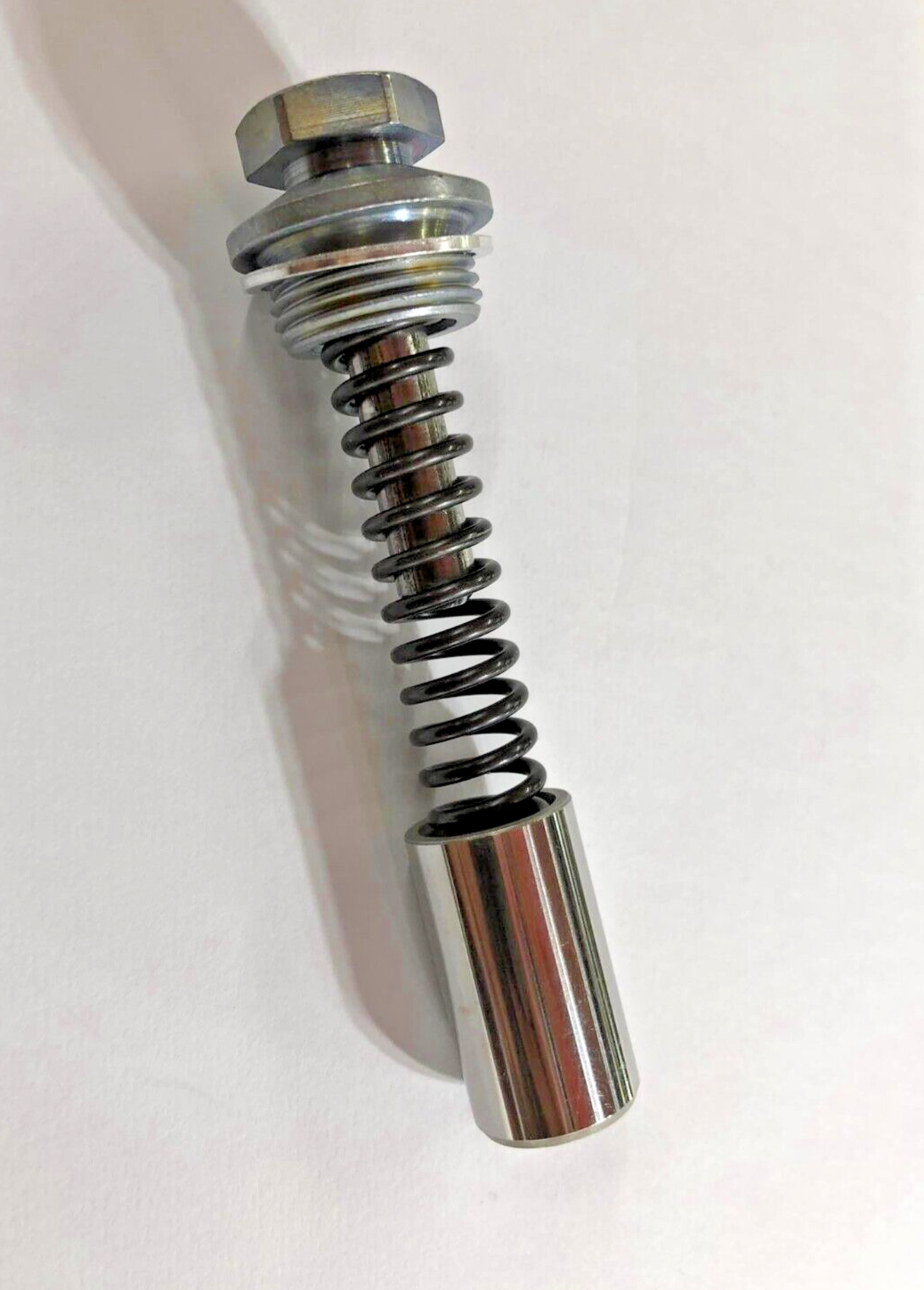

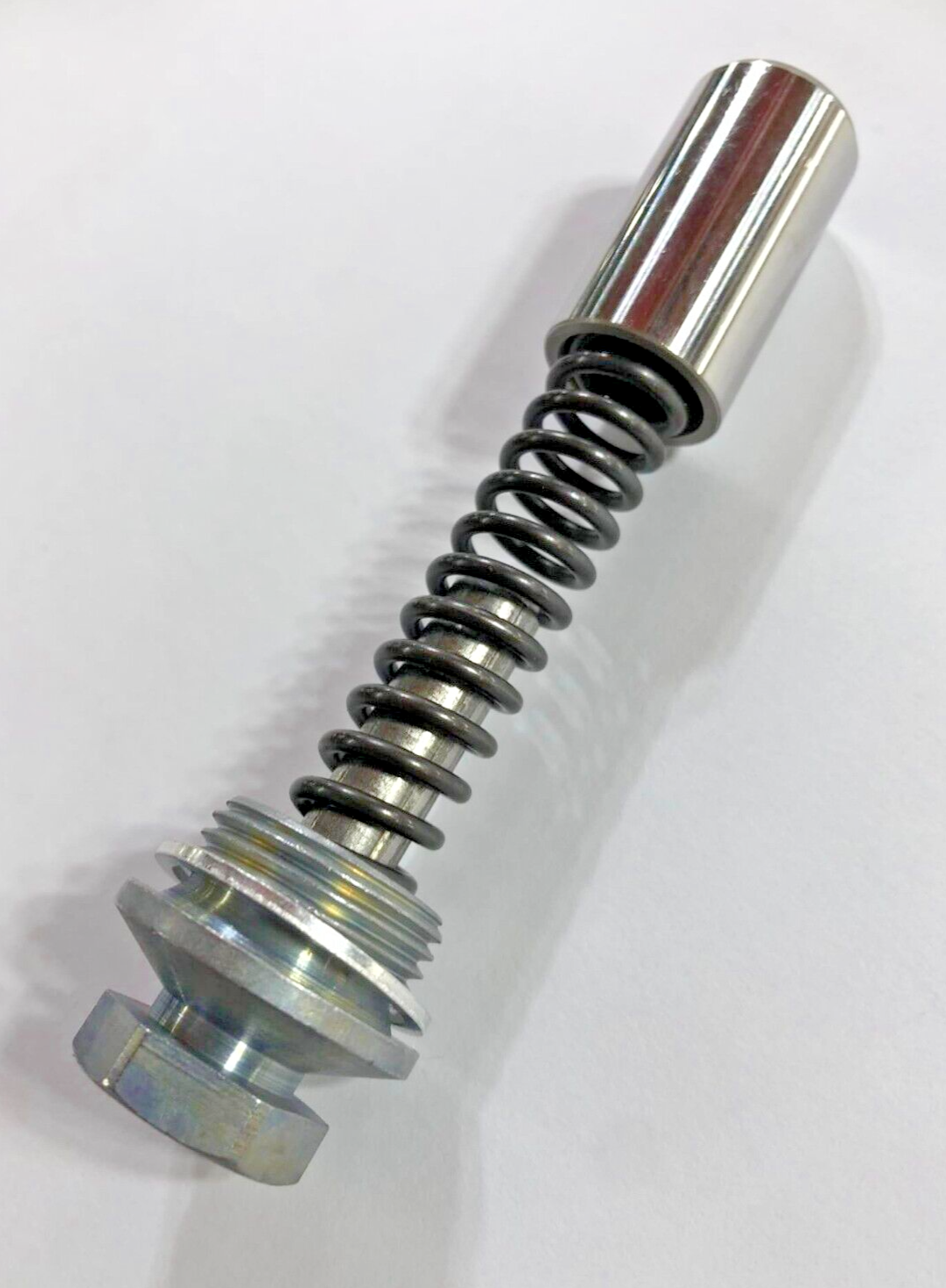

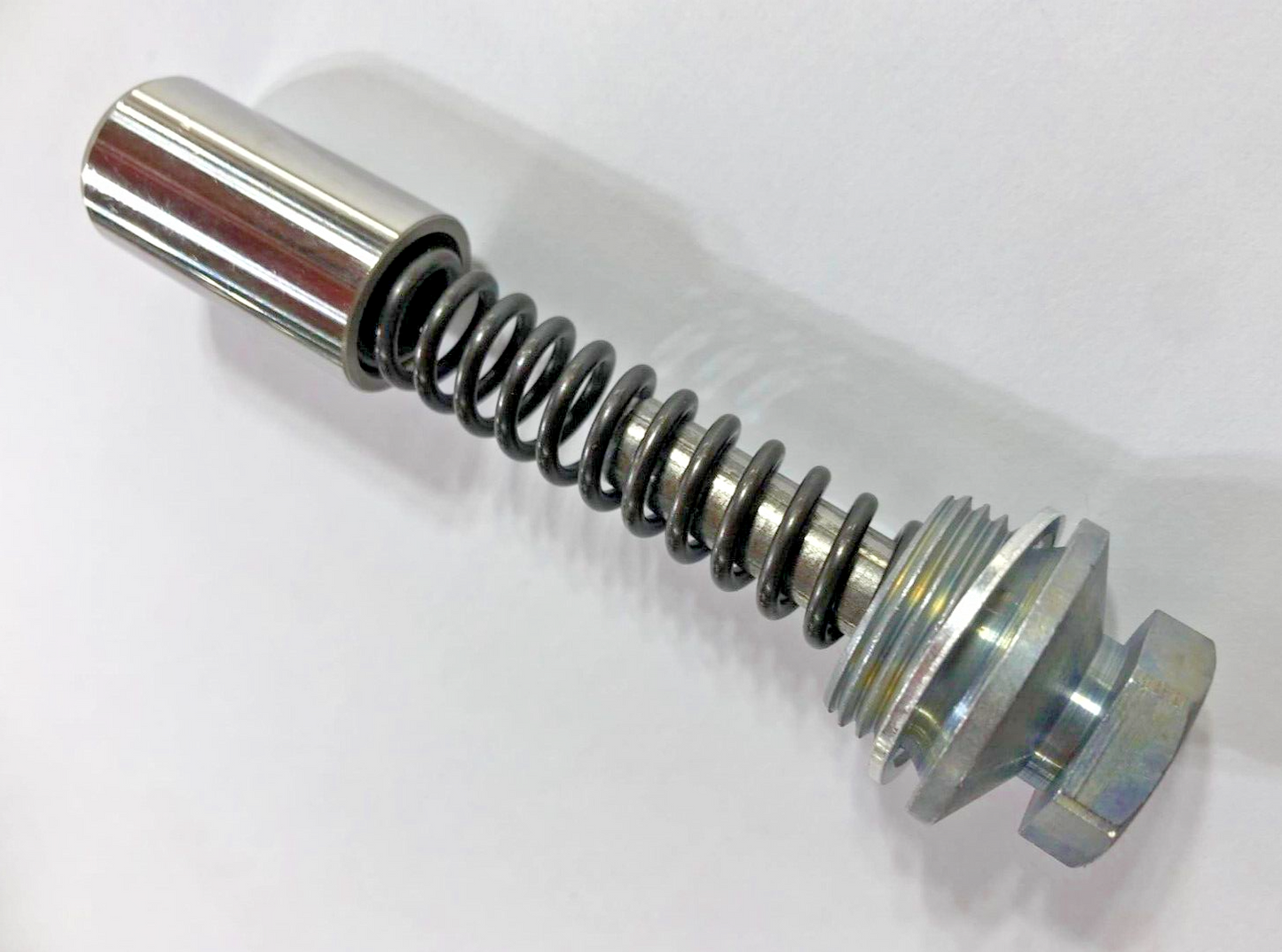

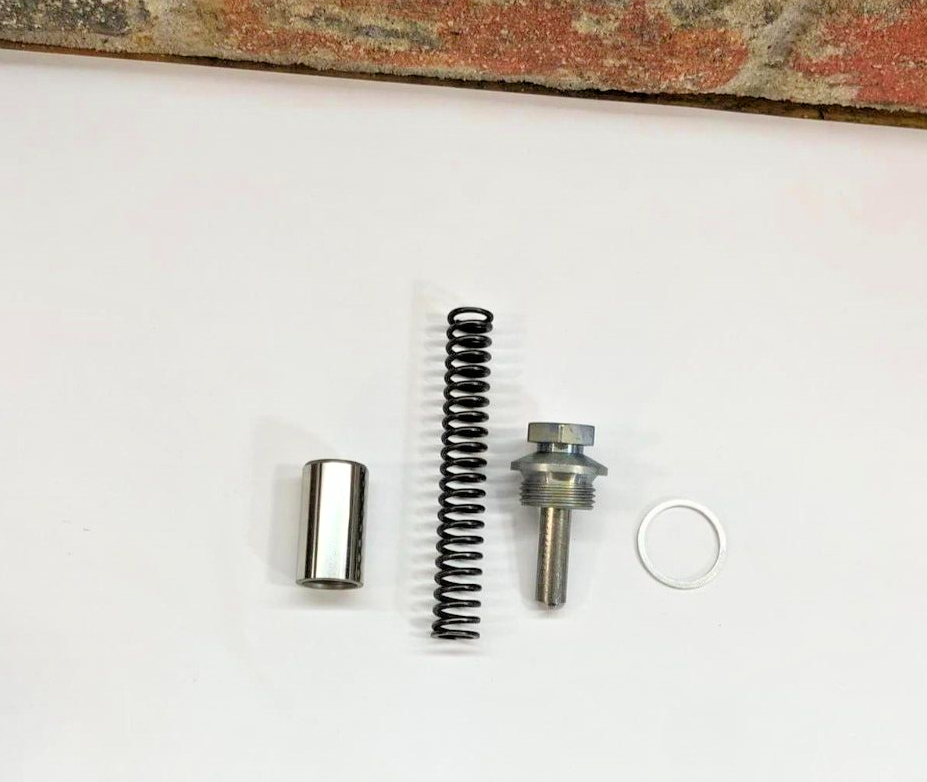

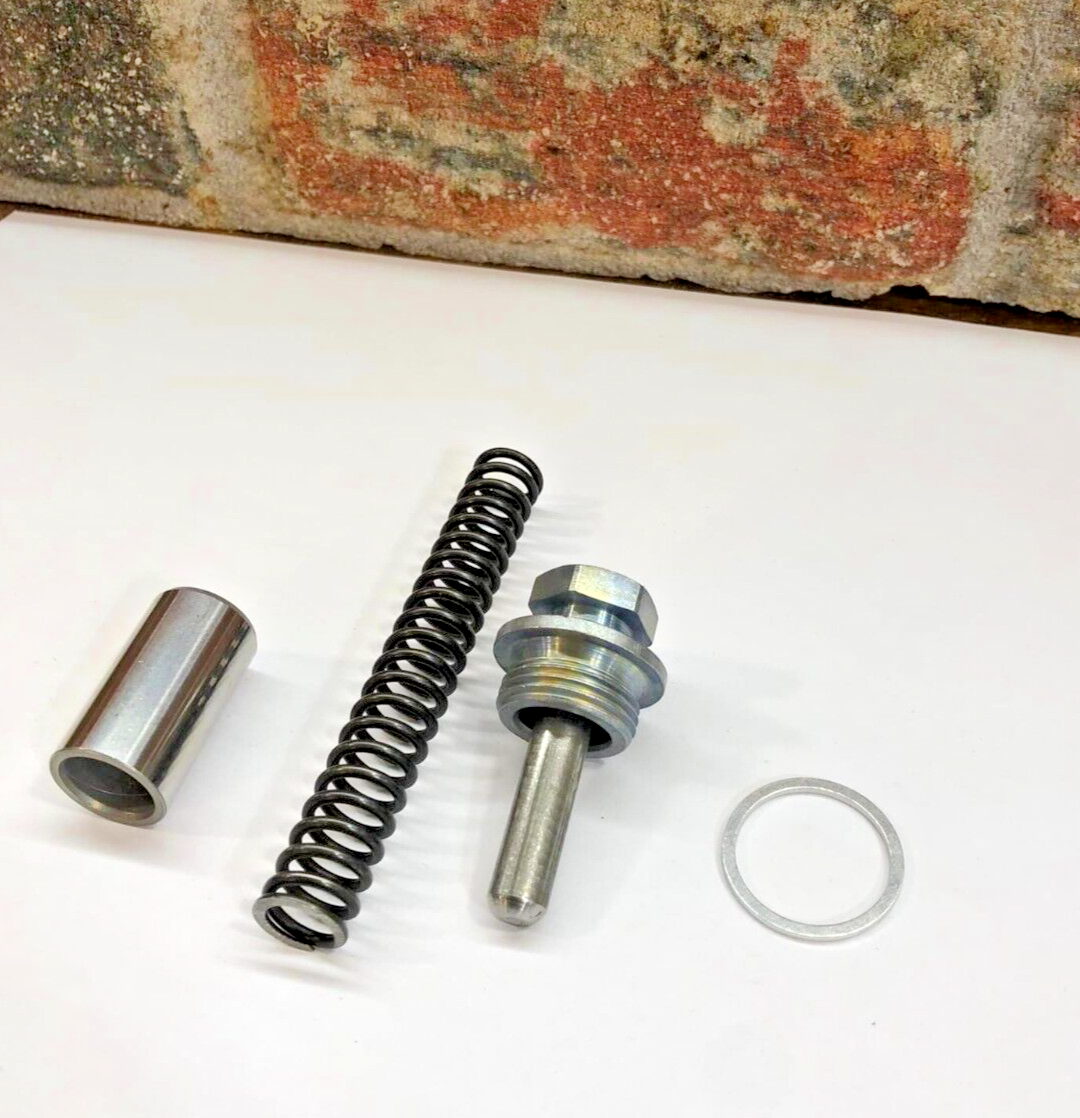

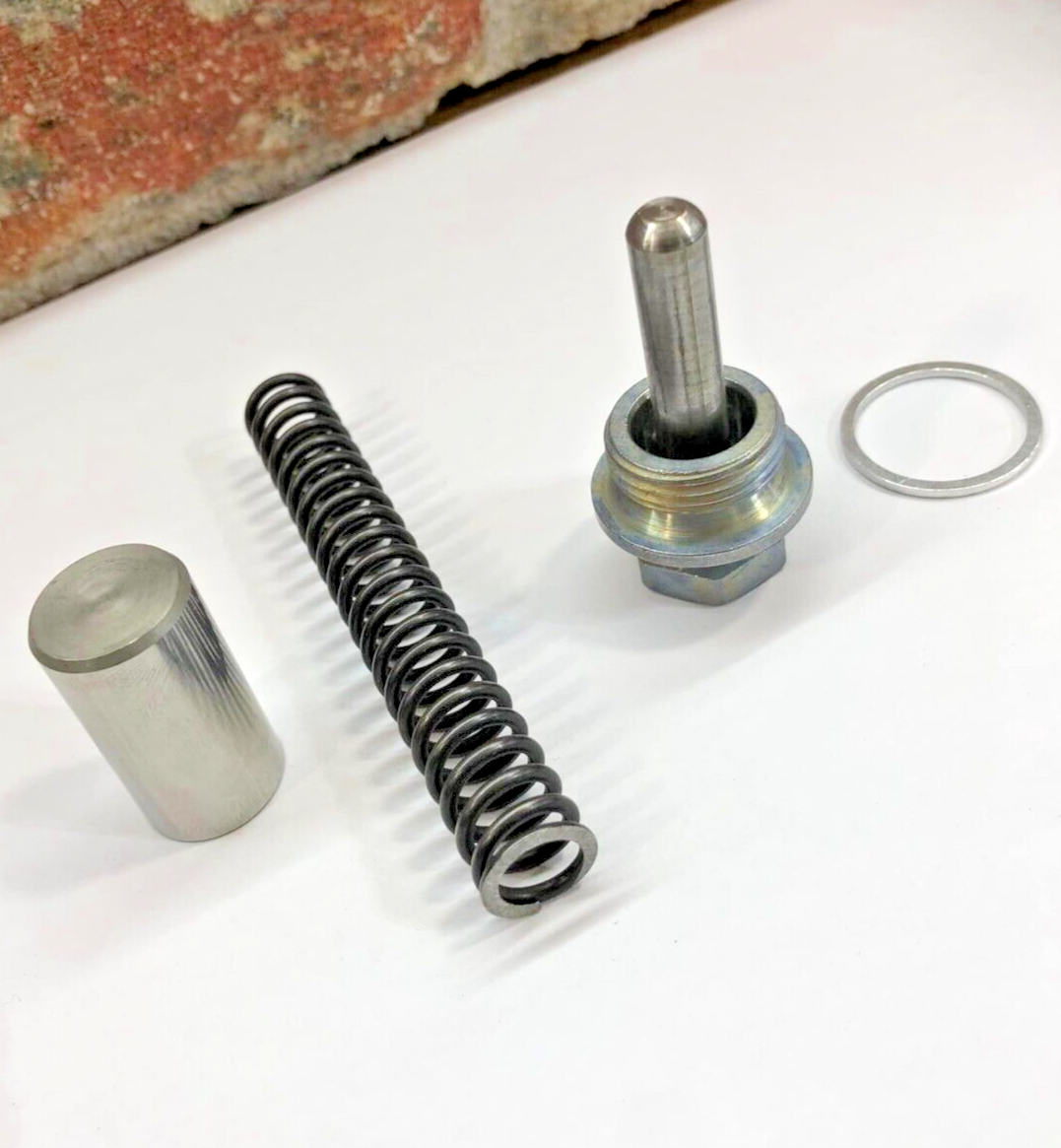

Kit Contents — All Genuine Porsche OE Parts

• Updated oil pressure relief piston
• Uprated spring

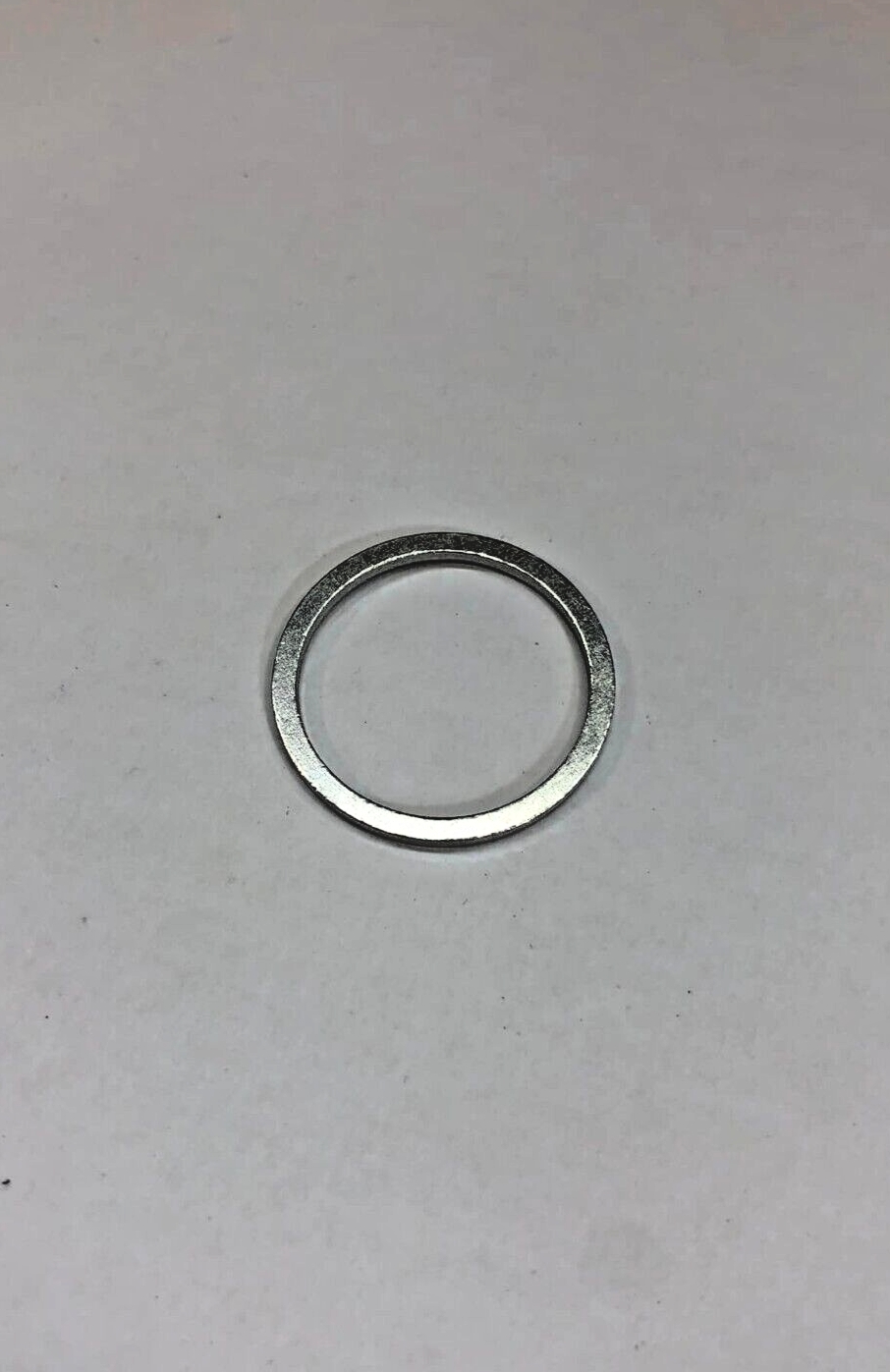

• Crush washer

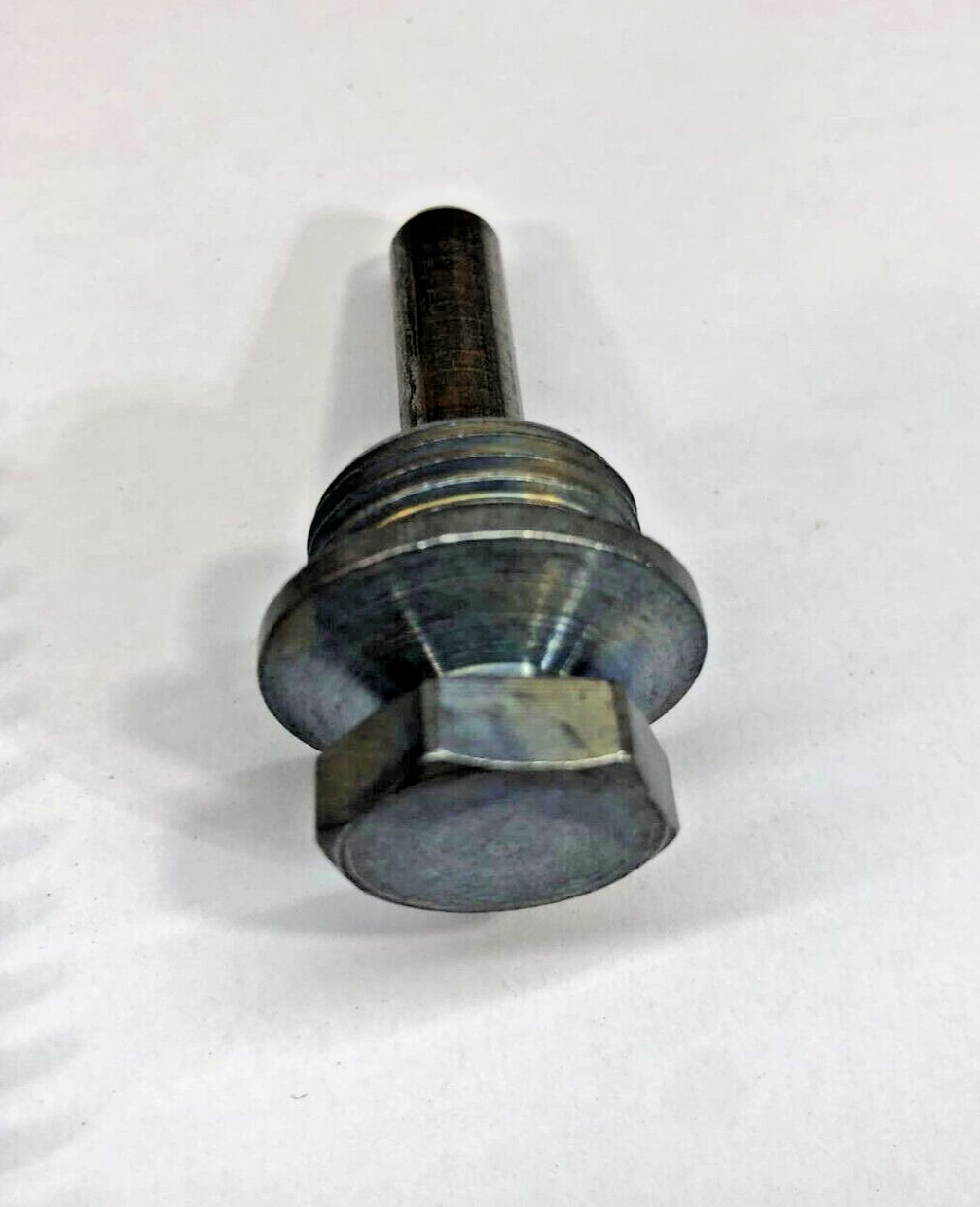

• Securing bolt

Installation

Single bolt removal. 17mm socket. Torque to 50 Nm. No specialist tools required.

OE Part Reference: PSR9L-OILPRES-COLDST | Seller Warranty: 1 Year
