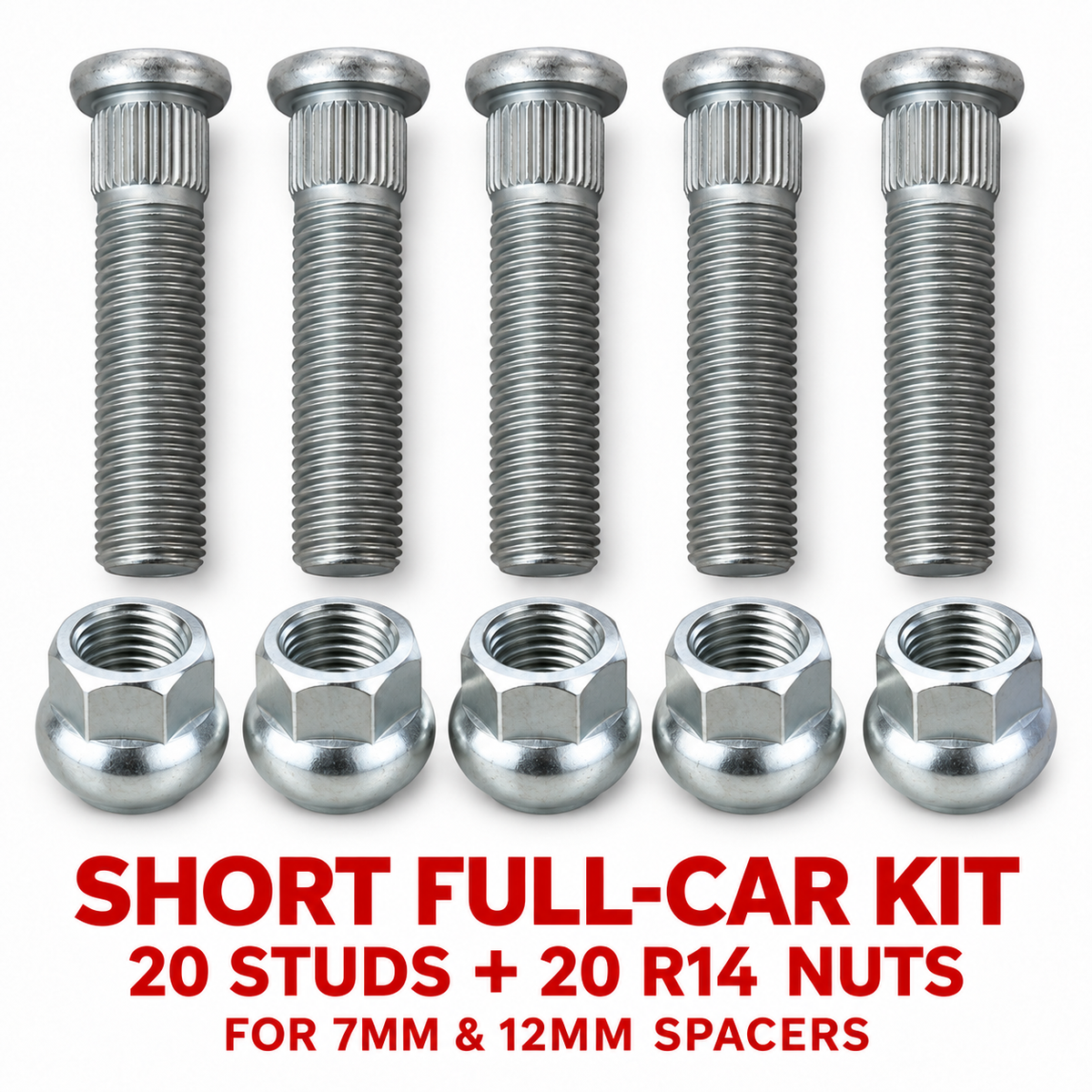

• Short Full-Car Kit – 20 Push-Fit Studs + 20 R14 Nuts for 7mm and 12mm spacers

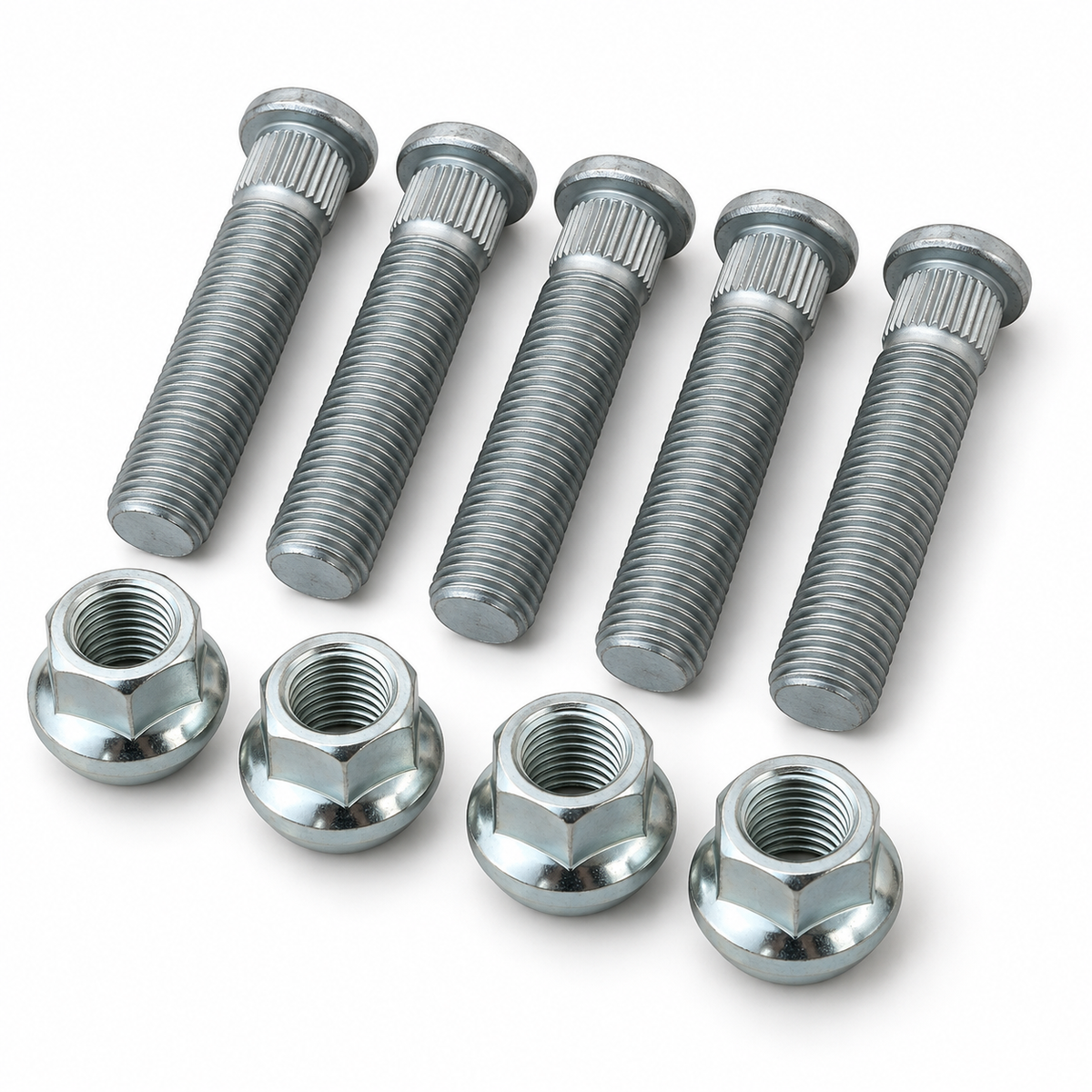

  • PSR9Line Porsche push-fit wheel studs and R14 nuts

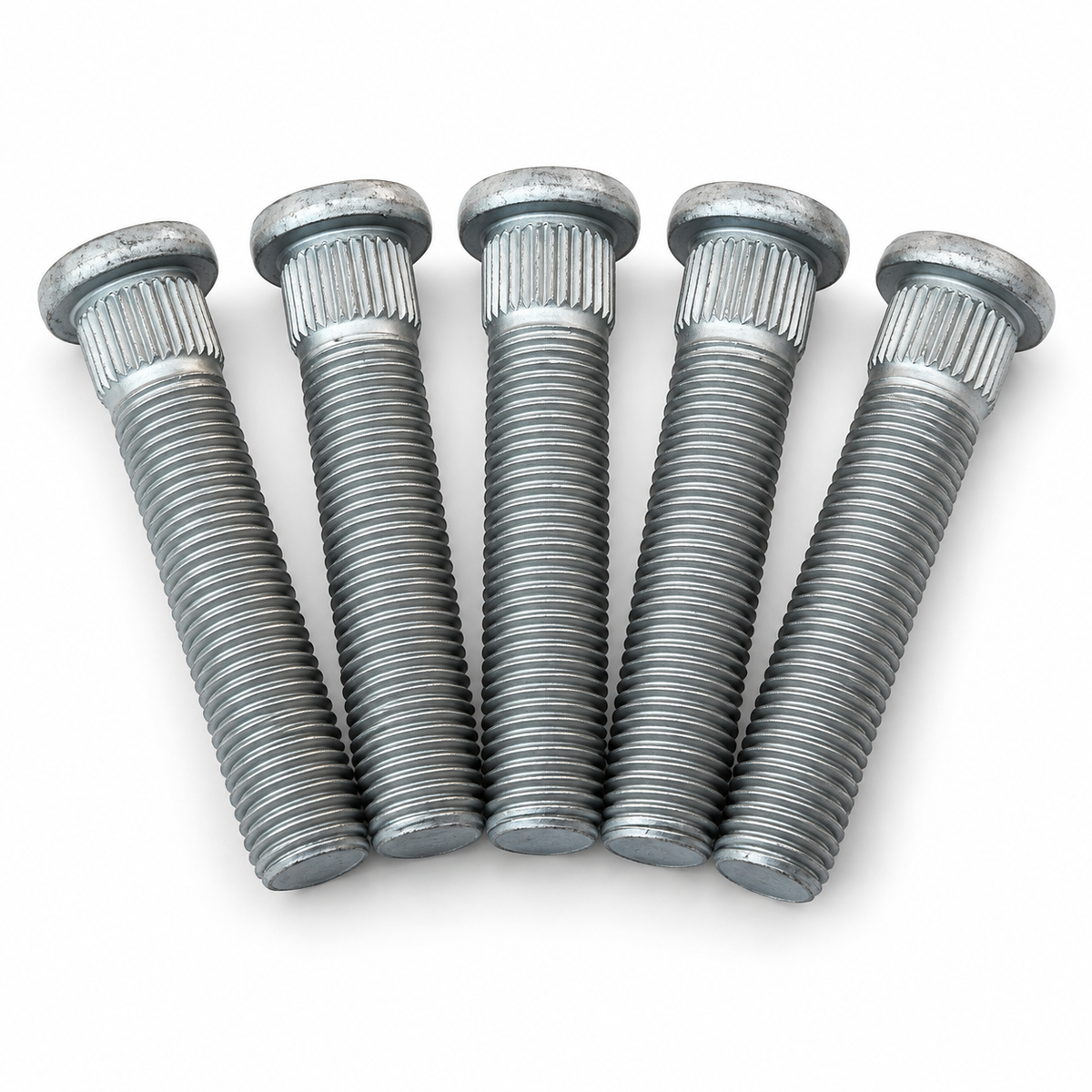

  • PSR9Line Class 10.9 extended push-fit Porsche wheel studs
  • Porsche push-fit wheel studs with R14 open ball-seat nuts

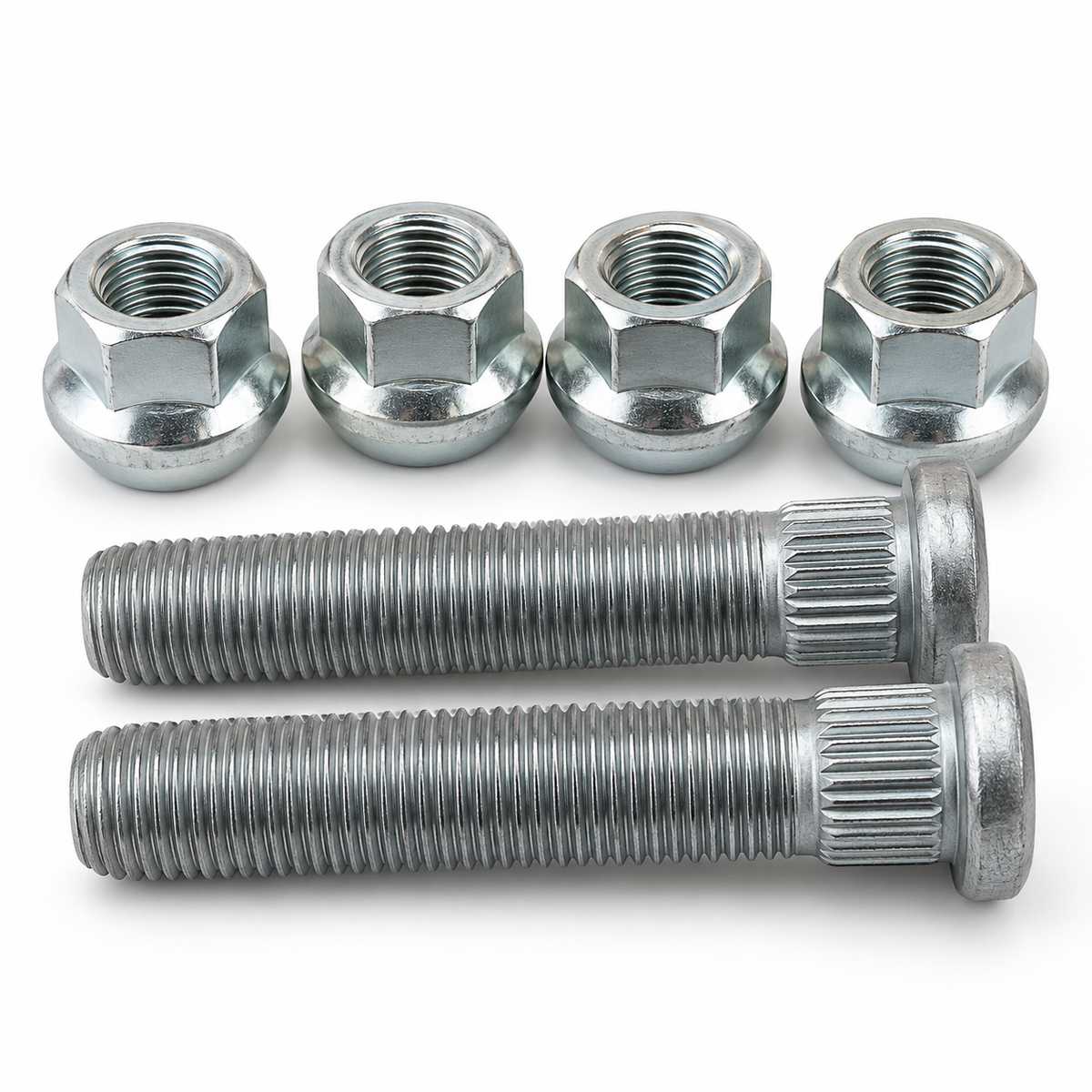

  • Close-up PSR9Line extended press-in Porsche wheel studs

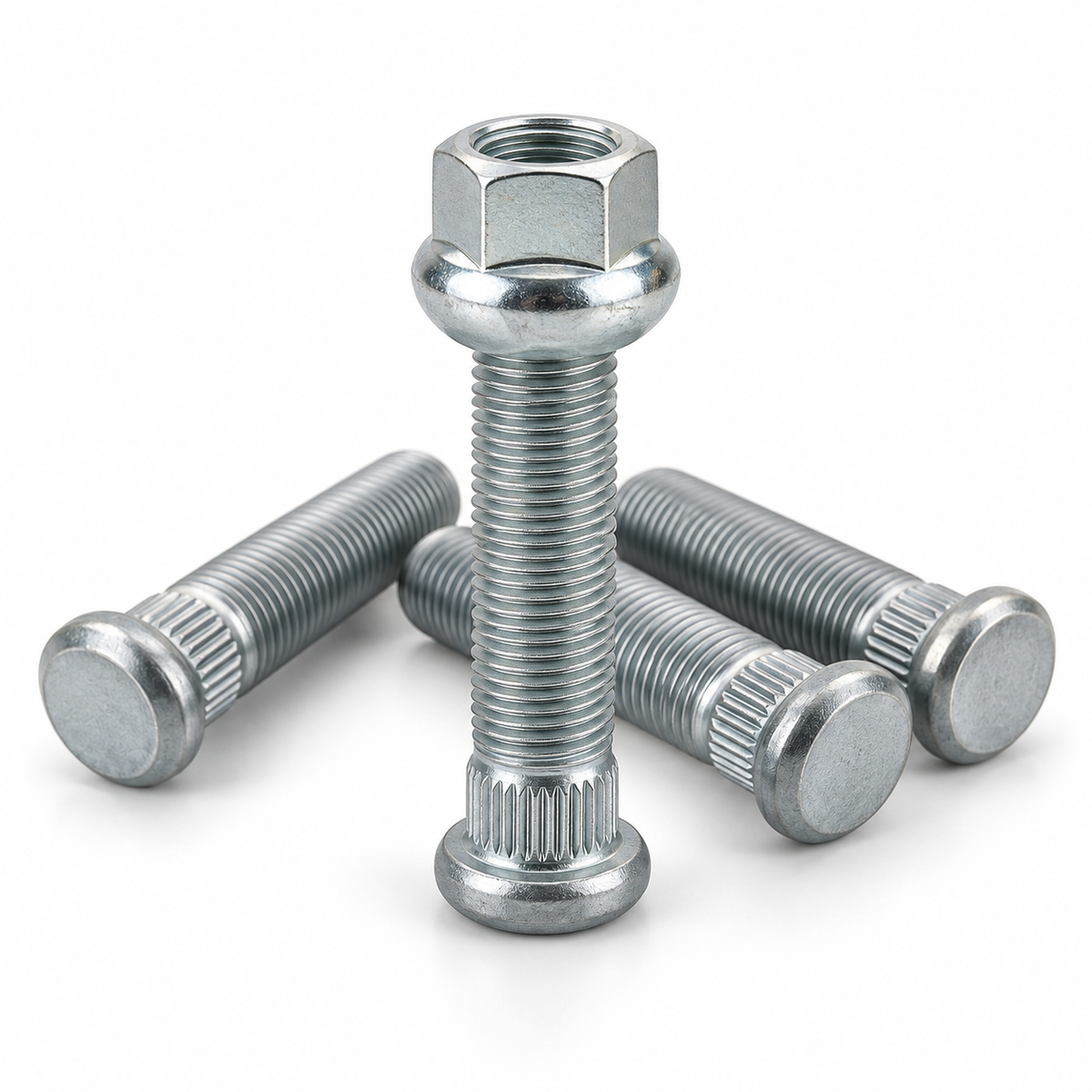

  • PSR9Line R14 open Porsche wheel nuts

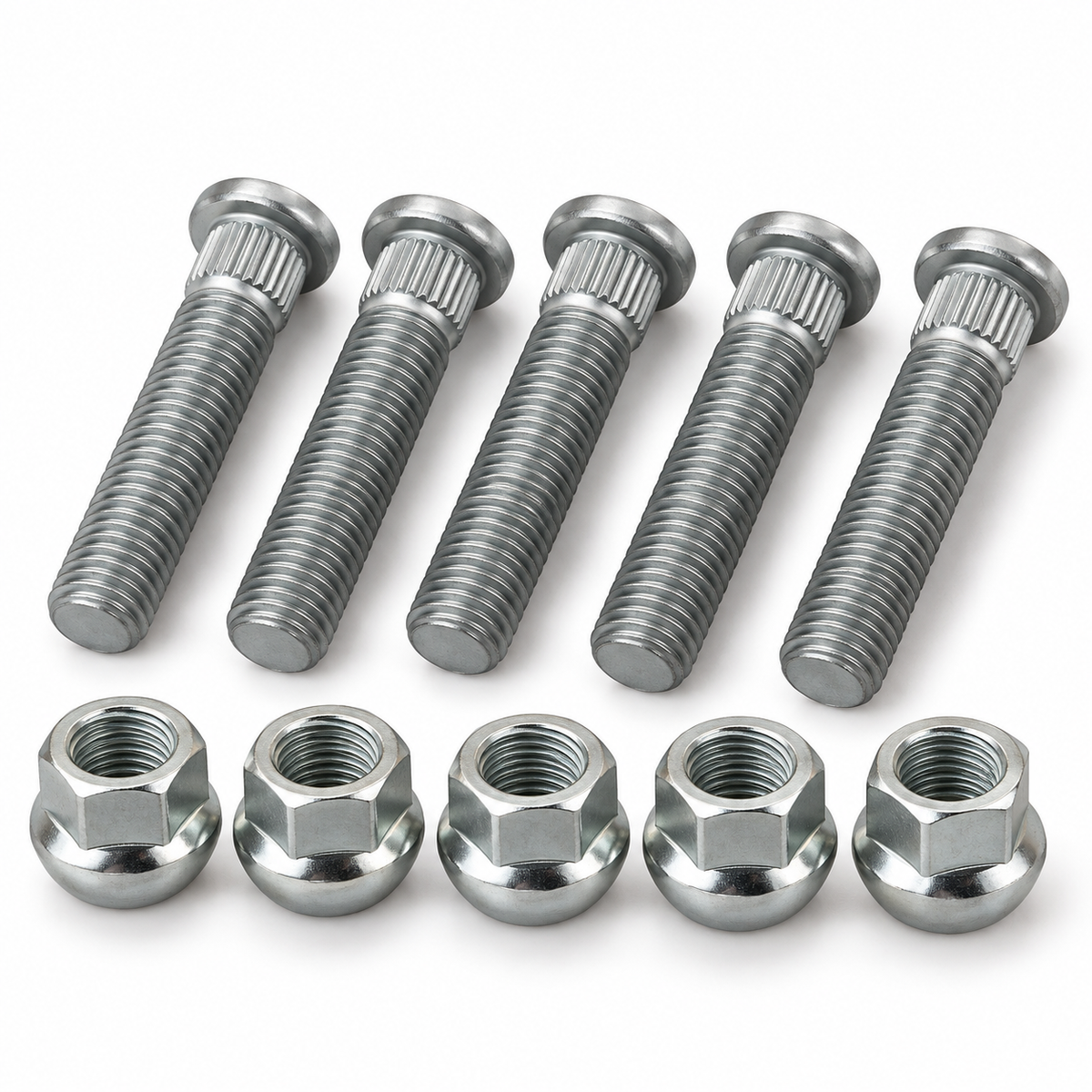

  • PSR9Line Porsche push-fit wheel hardware

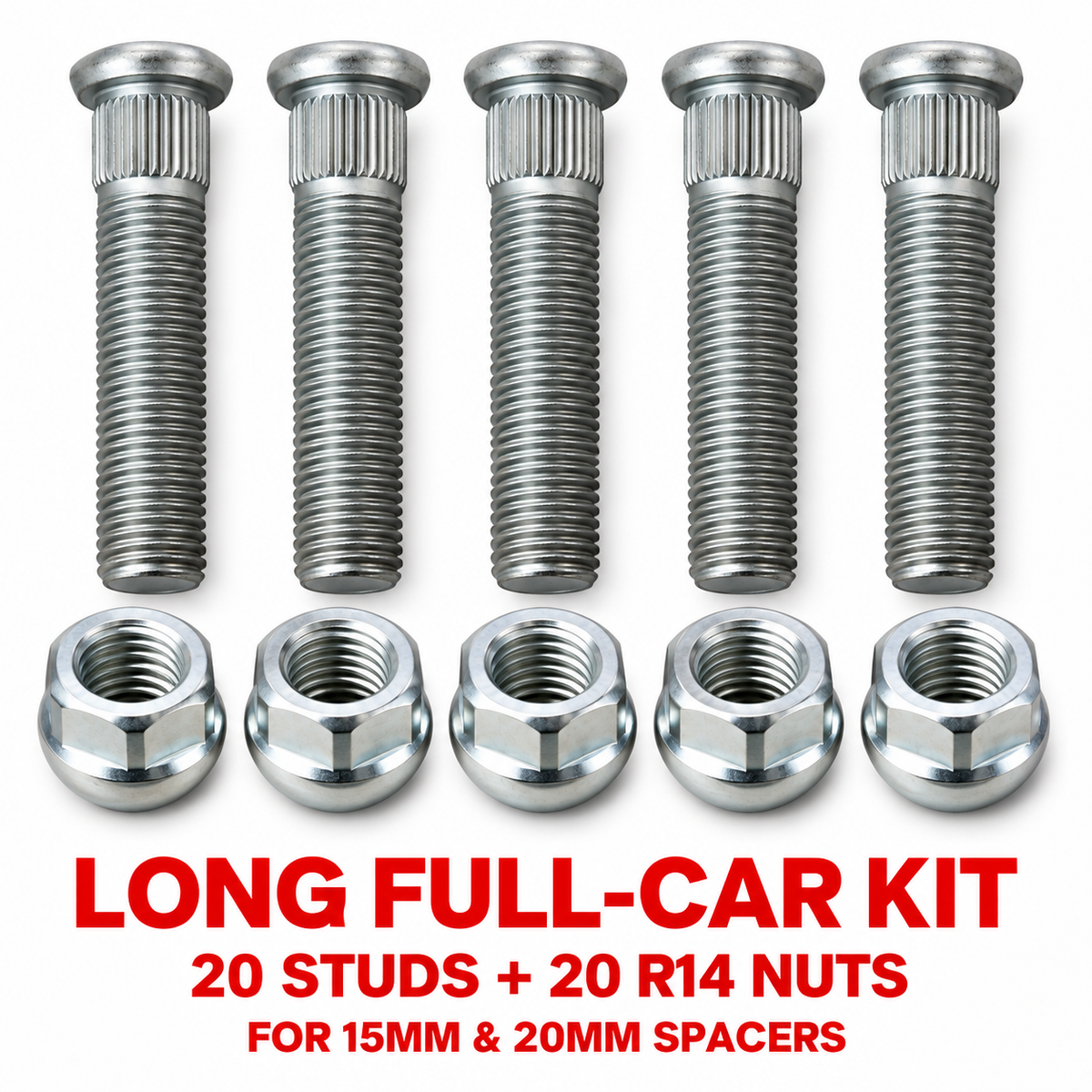

  • Long Full-Car Kit – 20 Push-Fit Studs + 20 R14 Nuts for 15mm and 20mm spacers

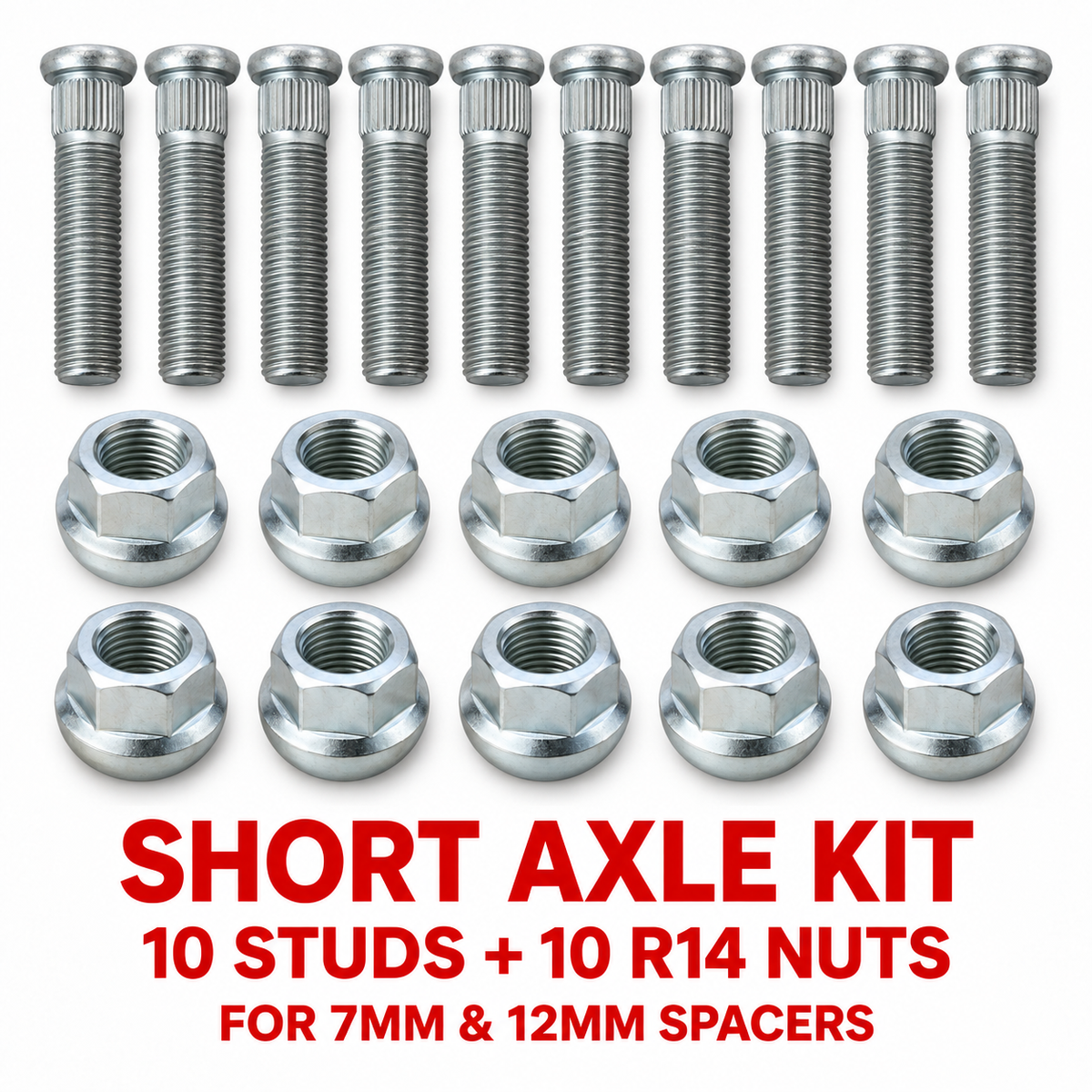

  • Short Axle Kit – 10 Push-Fit Studs + 10 R14 Nuts for 7mm and 12mm spacers

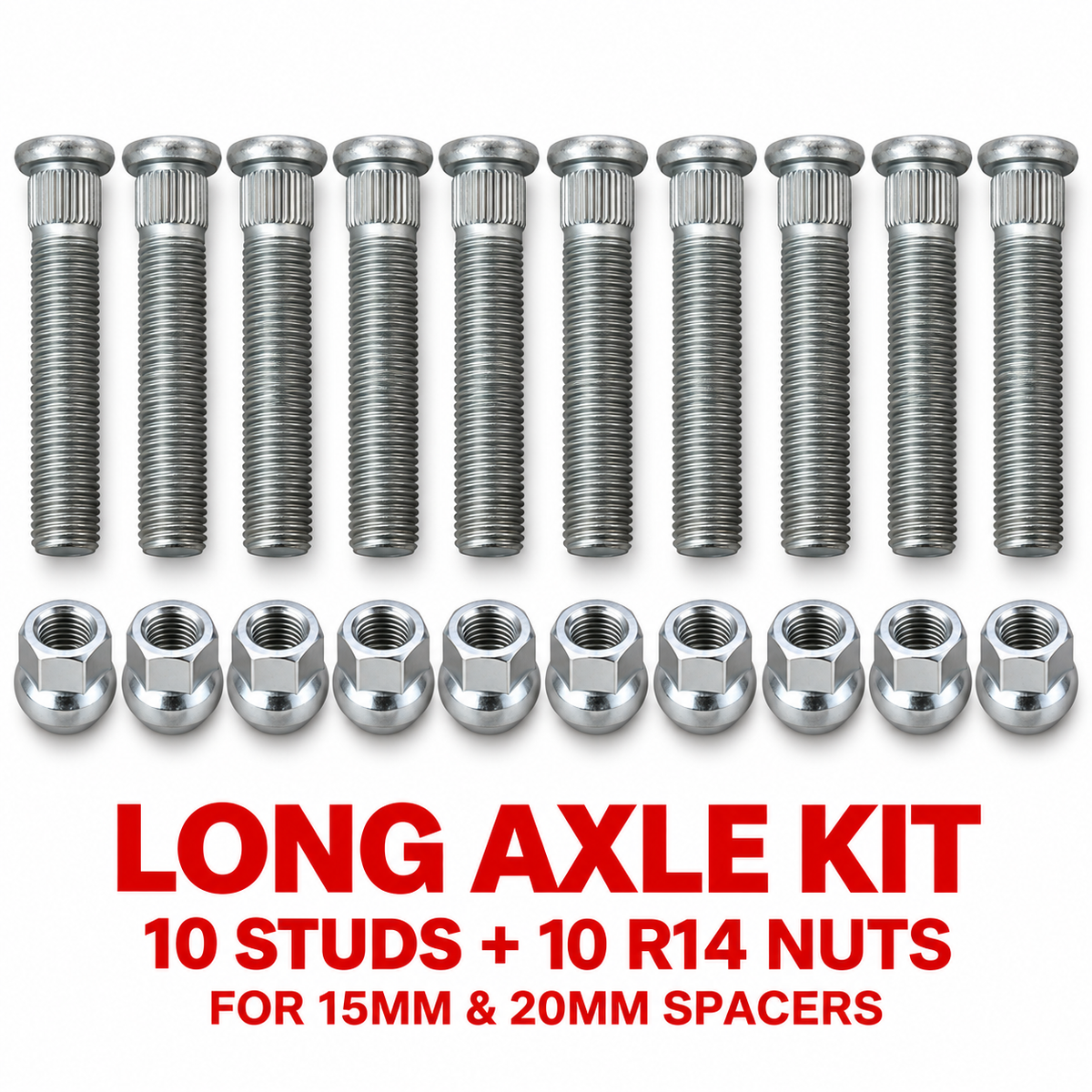

  • Long Axle Kit – 10 Push-Fit Studs + 10 R14 Nuts for 15mm and 20mm spacers

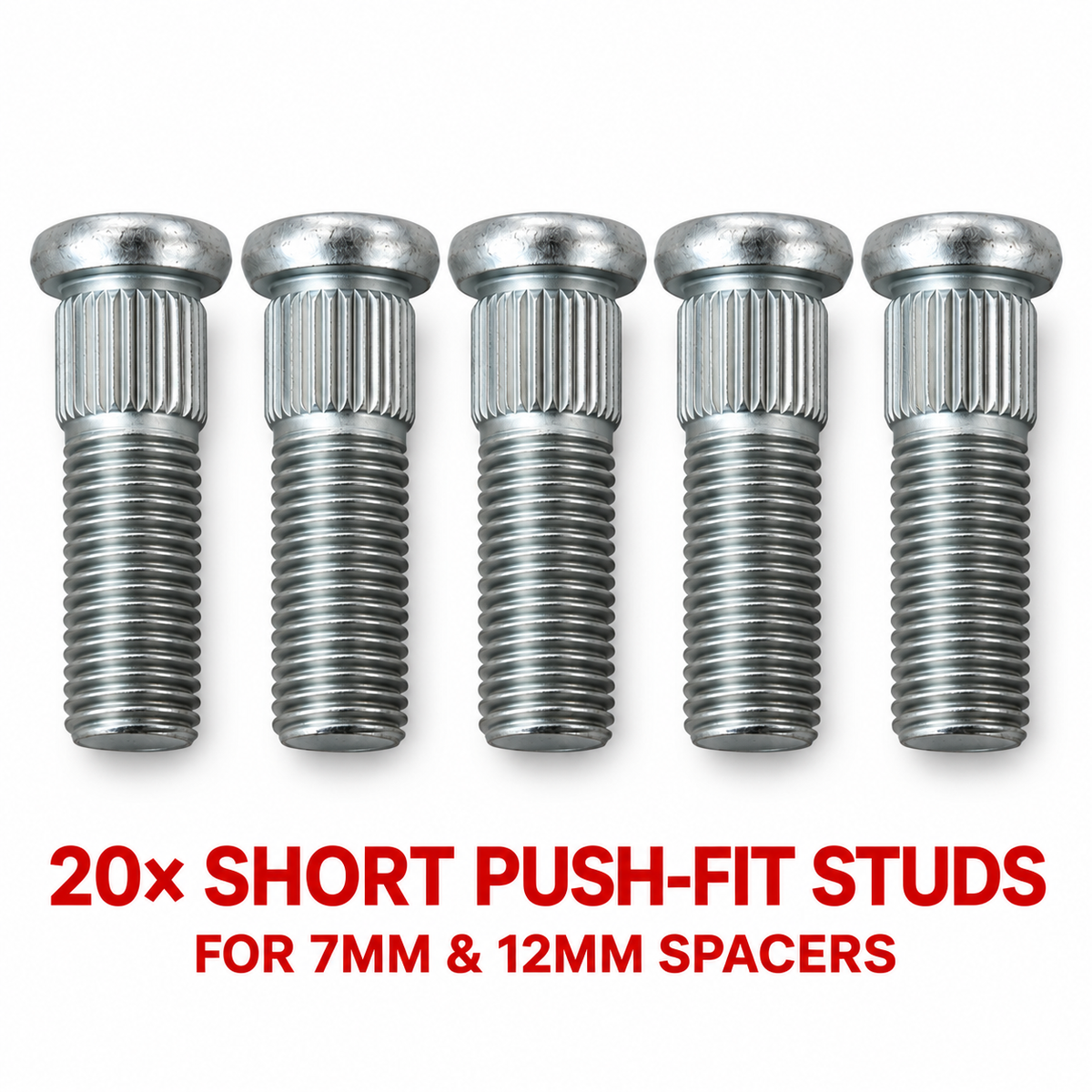

  • 20 Short Push-Fit Porsche Wheel Studs for 7mm and 12mm spacers

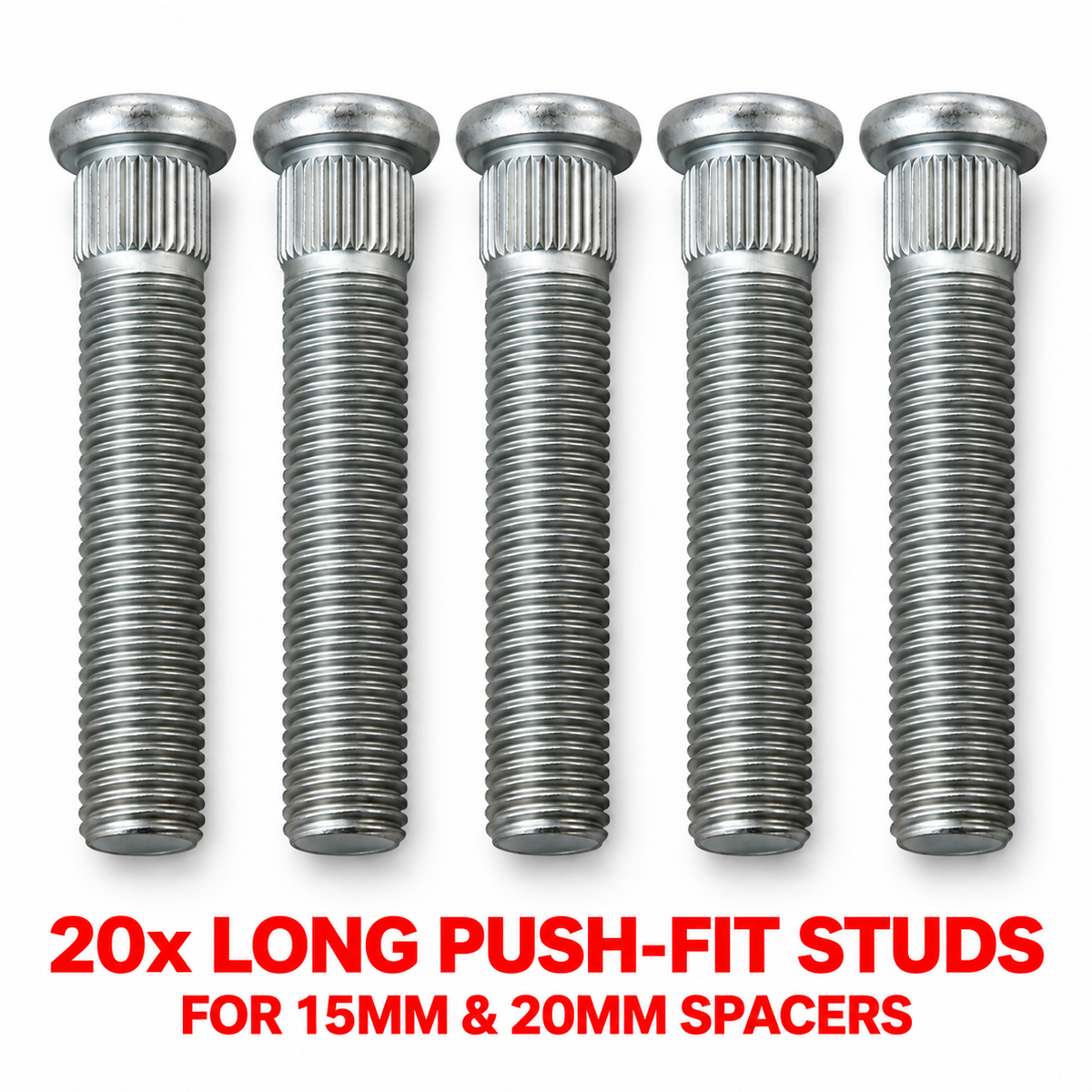

  • 20 Long Push-Fit Porsche Wheel Studs for 15mm and 20mm spacers

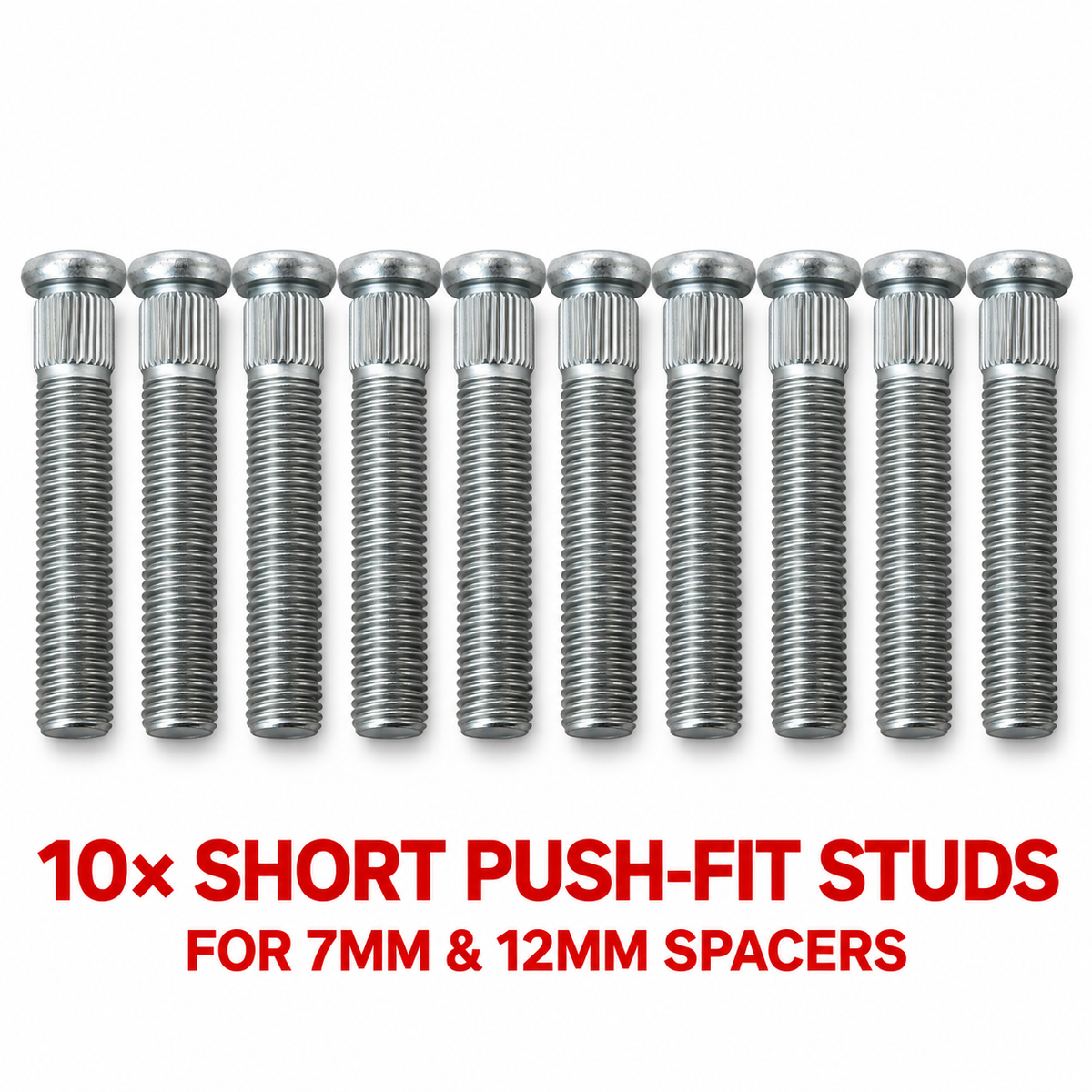

  • 10 Short Push-Fit Porsche Wheel Studs for 7mm and 12mm spacers

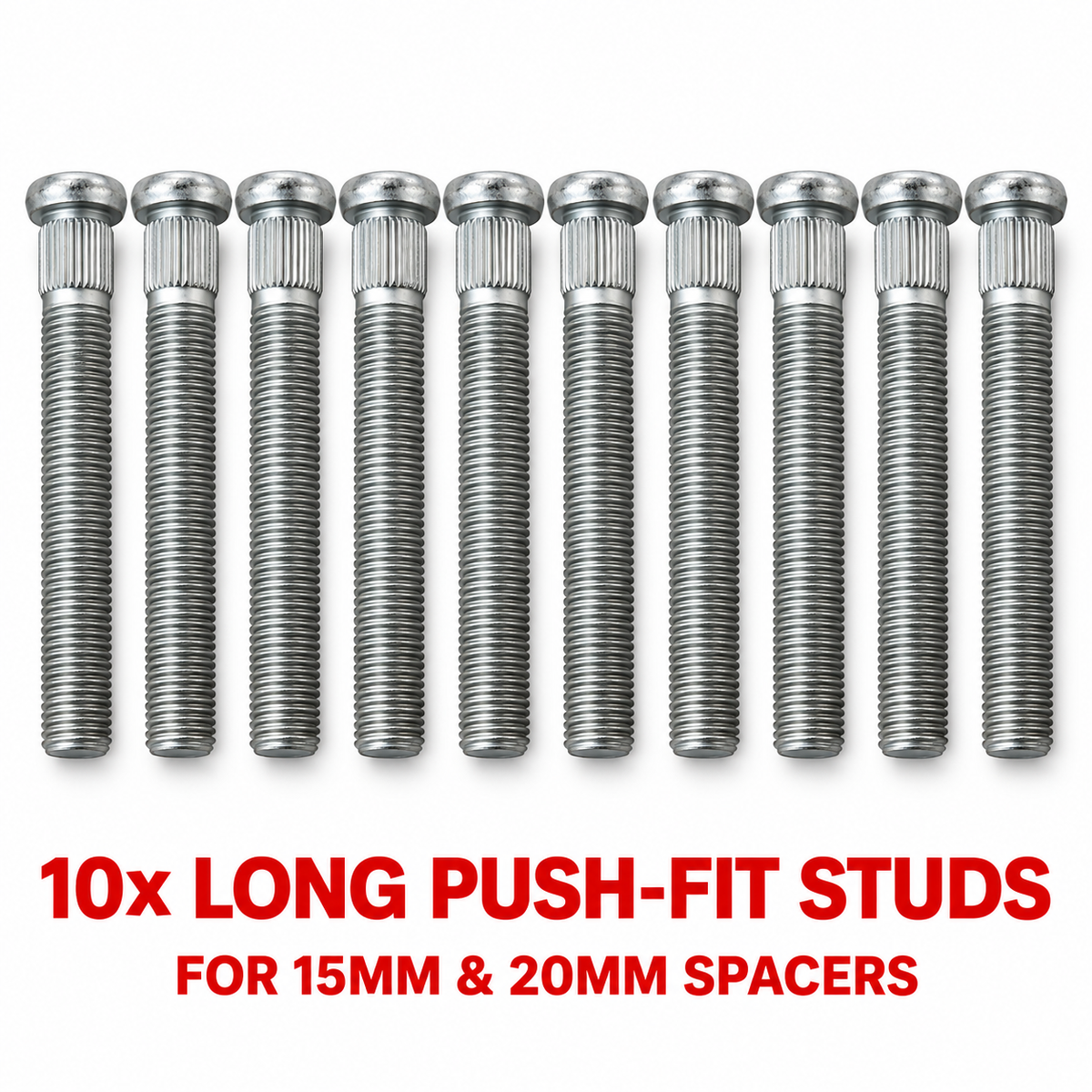

  • 10 Long Push-Fit Porsche Wheel Studs for 15mm and 20mm spacers

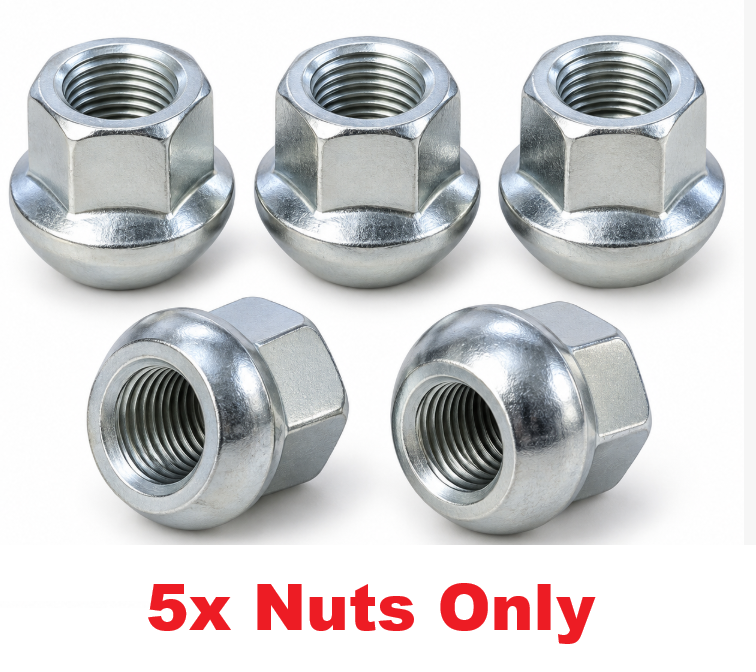

  • 5 × R14 Open Porsche Wheel Nuts
1 7

PSR9Line

Porsche Extended Push-Fit Wheel Studs & Kits – M14x1.5 PSR9Line

Porsche Extended Push-Fit Wheel Studs & Kits – M14x1.5 PSR9Line

£139.85 GBP
£139.85 GBP
Sale Sold out
Tax included · Free UK shipping · International shipping charges apply.
Configuration

Extended push-fit wheel studs for Porsche applications using factory-style M14×1.5 press-in studs.

Porsche Fitment – Earlier Stud-Equipped Models
Push-fit wheel studs were the standard wheel-fastening arrangement across most earlier Porsche models, including the classic 911 / G-Series, 964 and 993, as well as the 924, 944, 928 and 968. Porsche moved away from factory wheel studs in the late 1990s, with the 986 Boxster and 996-generation 911 adopting wheel bolts instead. This product is therefore intended for the earlier Porsche models originally equipped with press-in wheel studs, rather than the later wheel-bolt cars.

This range is designed as a straightforward spacer-hardware solution, with two stud lengths selected to cover the common PSR9Line spacer applications:

  • Short extended studs: for 7mm and 12mm spacer applications
  • Long extended studs: for 15mm and 20mm spacer applications

Available as studs only, stud-and-nut kits, or as complete matched kits including wheel spacers in our sister listing.

Technical specification

  • Thread: M14×1.5
  • Push-fit / press-in design
  • Knurl diameter: 14.6mm
  • Head height: 5mm
  • Geomet protective finish
  • Short stud: approx. 63mm overall / approx. 47mm threaded length
  • Long stud: approx. 73mm overall / approx. 57mm threaded length

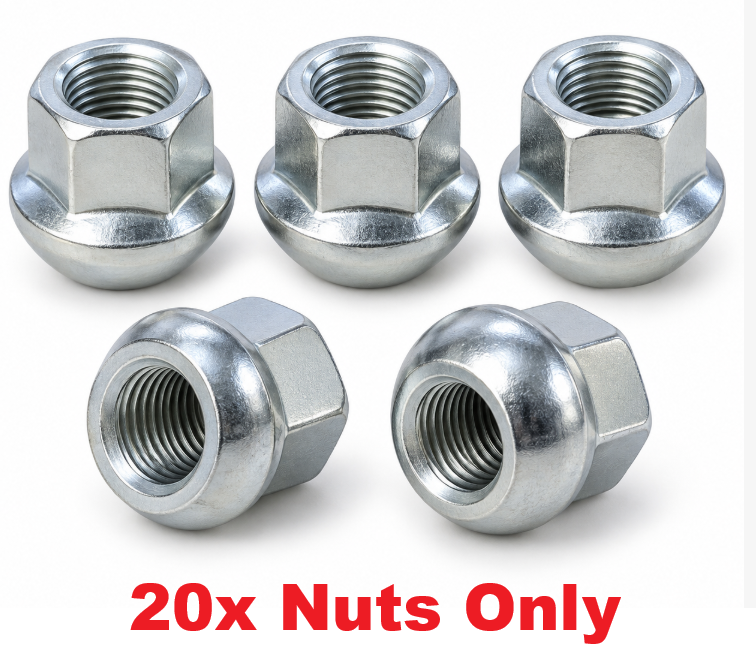

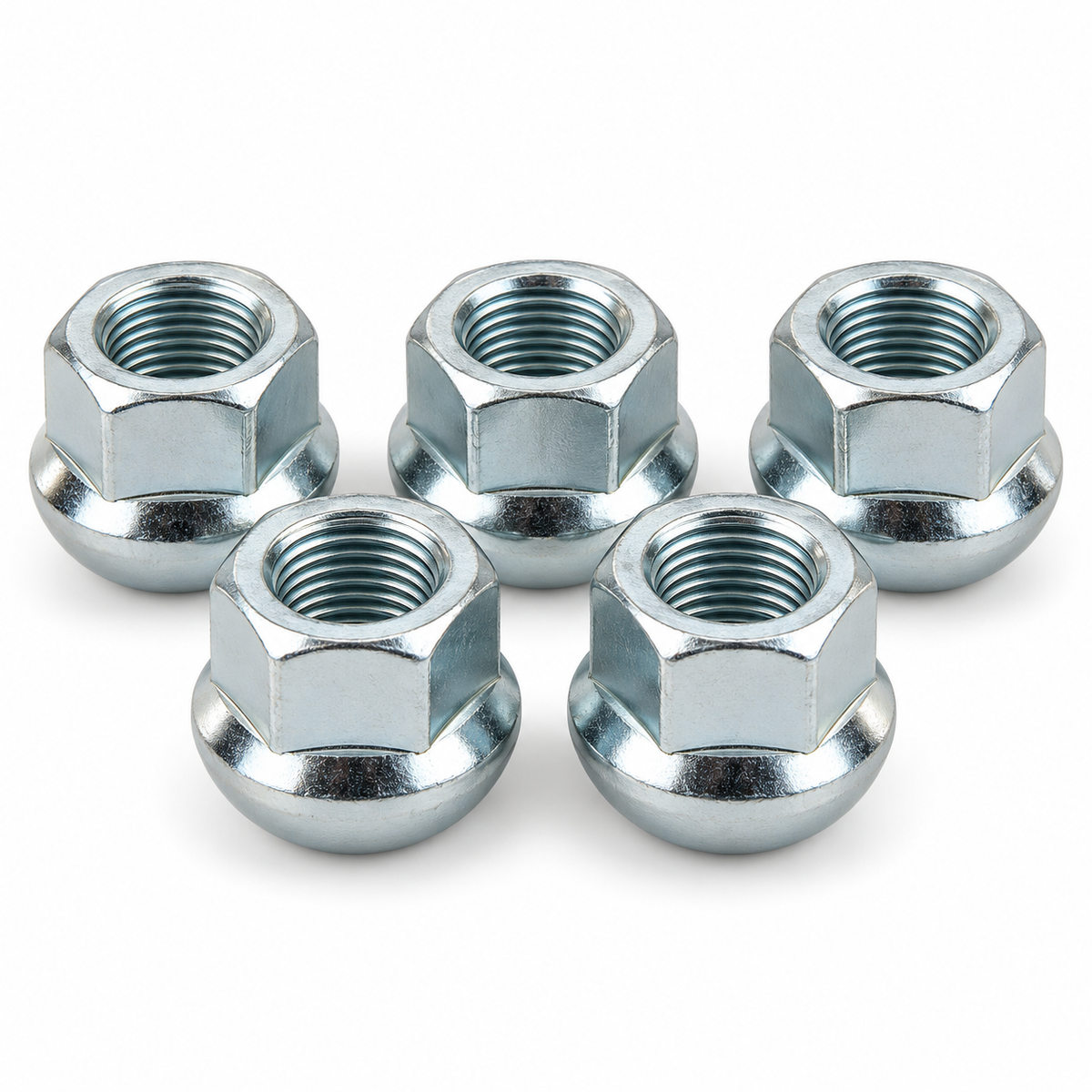

R14 open wheel nuts

  • M14×1.5
  • R14 rounded ball seat
  • 19mm hex
  • Open-ended design
  • Bright silver galvanised finish

Choosing the correct stud

7mm or 12mm spacers: choose the short extended stud.

15mm or 20mm spacers: choose the long extended stud.

Actual requirements can vary with hub, brake disc, wheel and spacer construction. Buyers should compare dimensions with their existing hardware and confirm adequate thread engagement, correct seating and clearance during installation.

Quality

High-quality European-manufactured components selected for fit, finish and durability. Produced and tested under a TÜV-certified UNI EN ISO 9001:2015 quality-management system.
