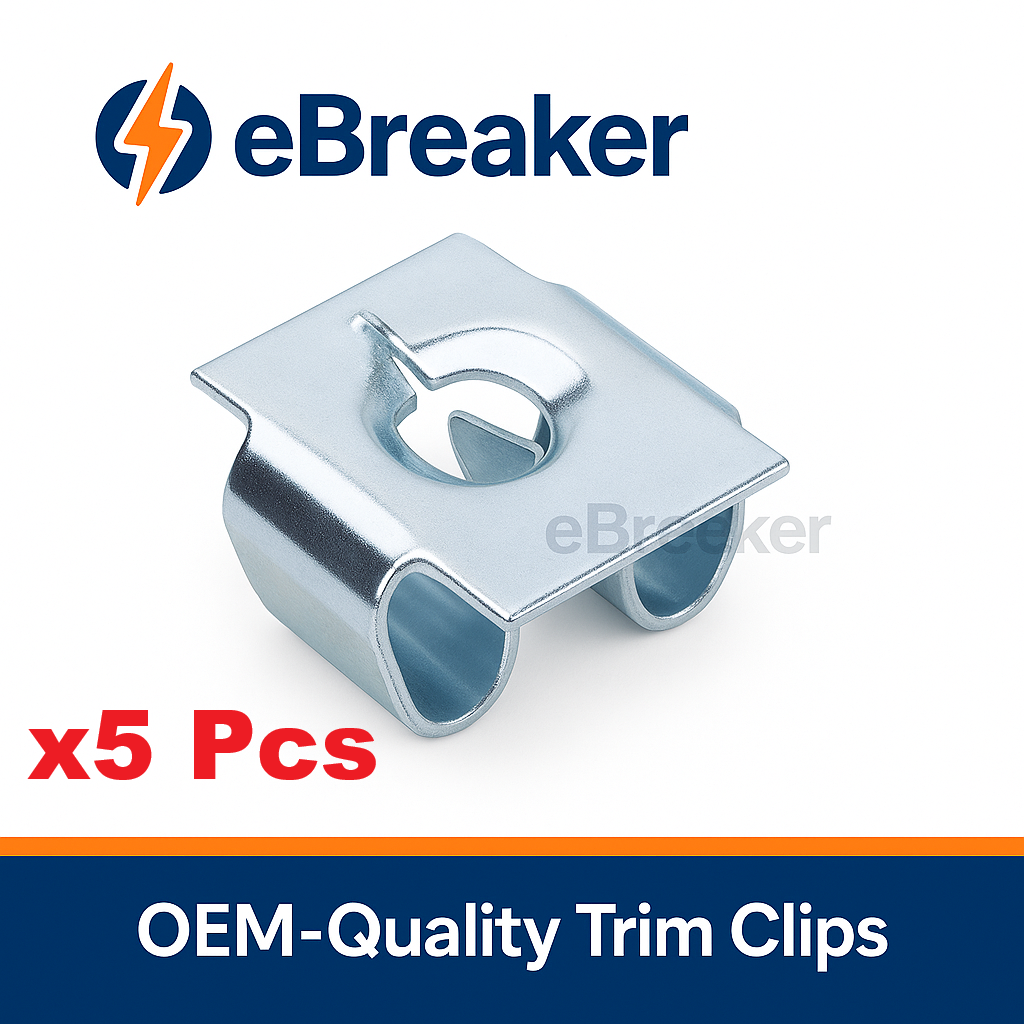

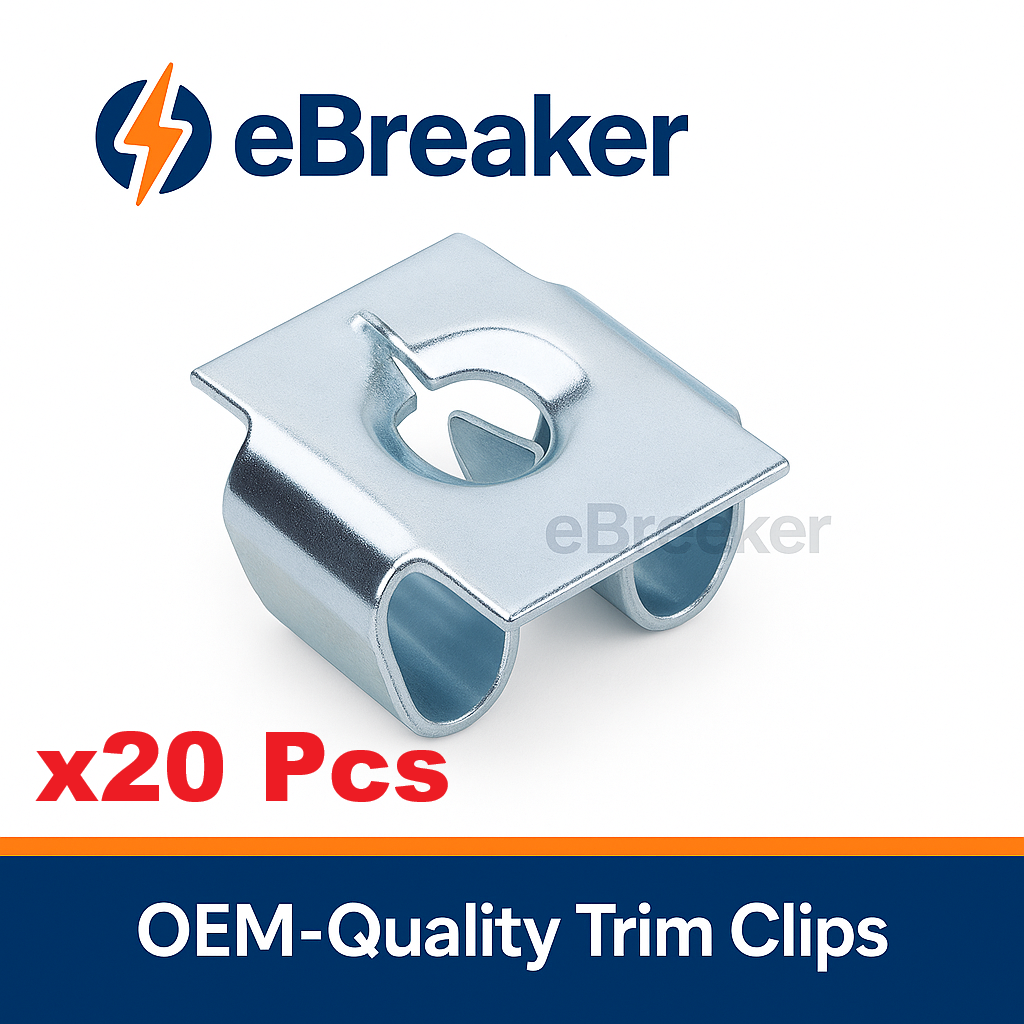

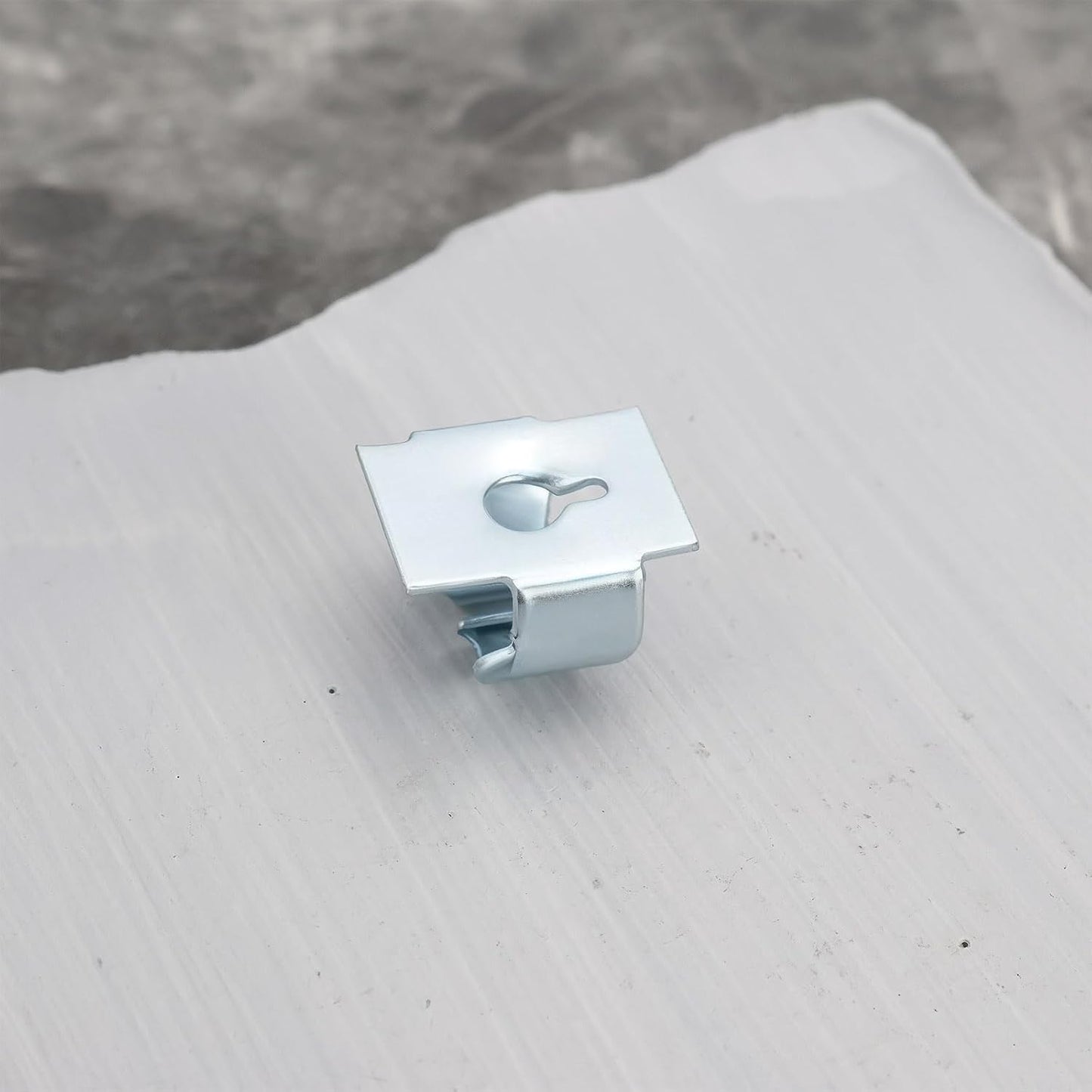

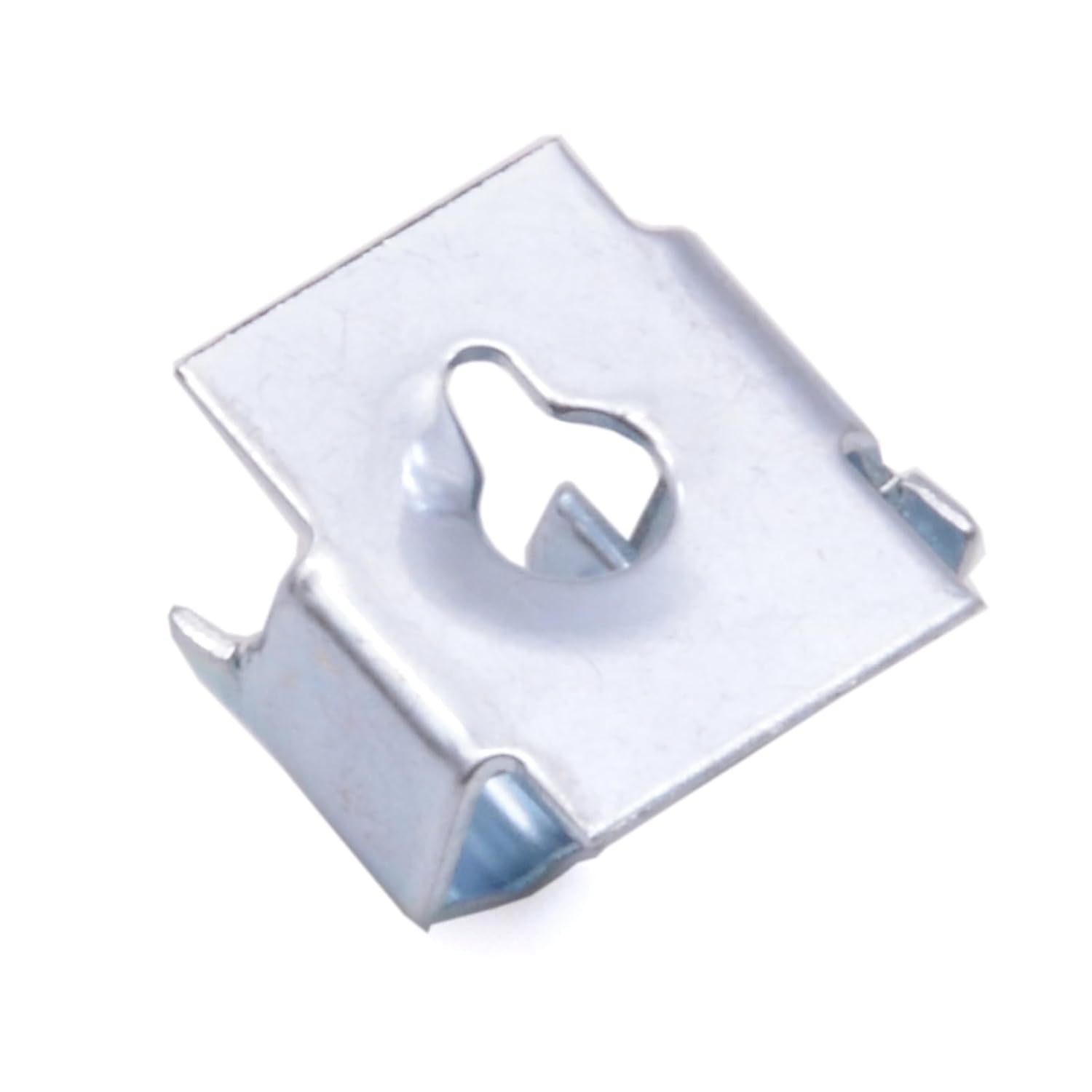

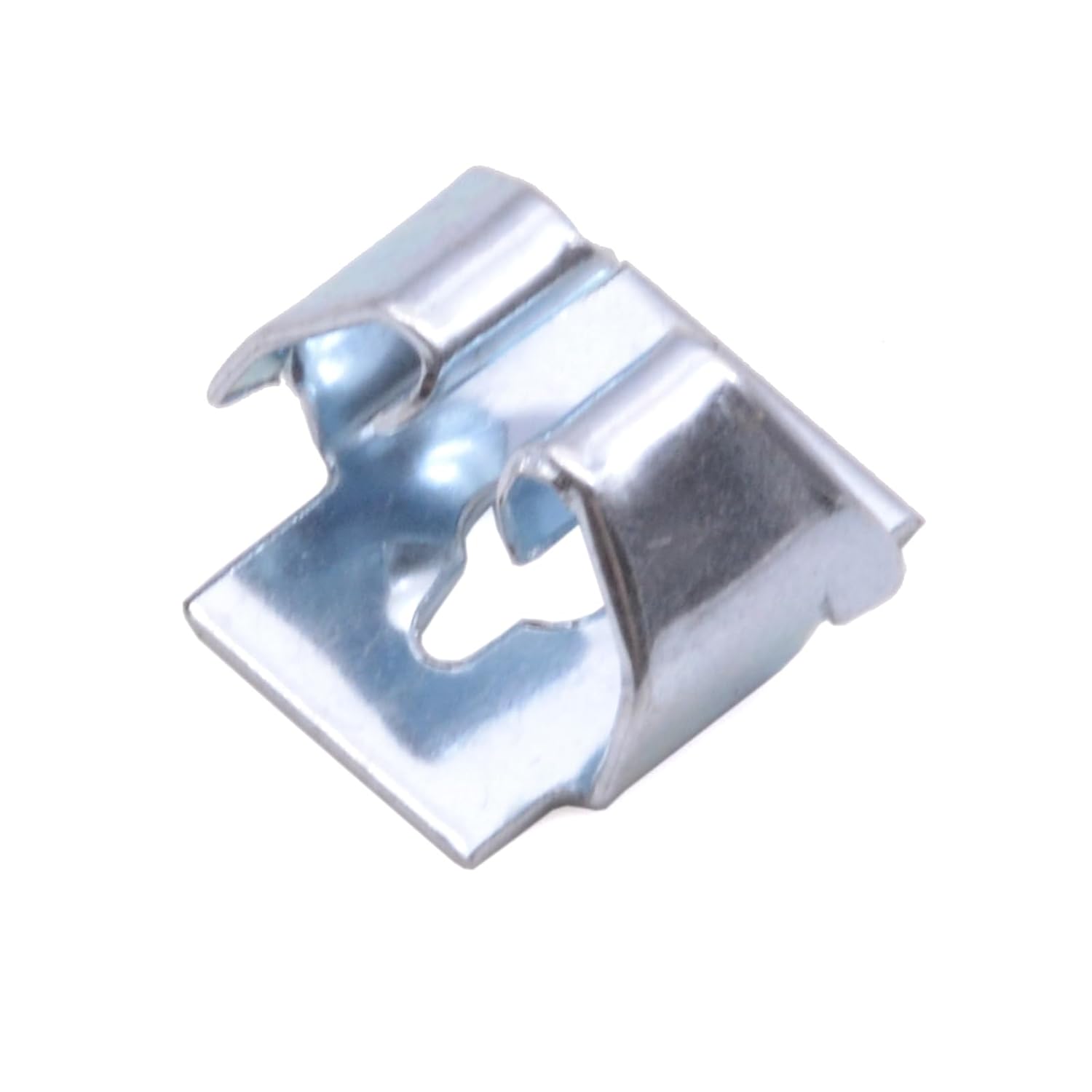

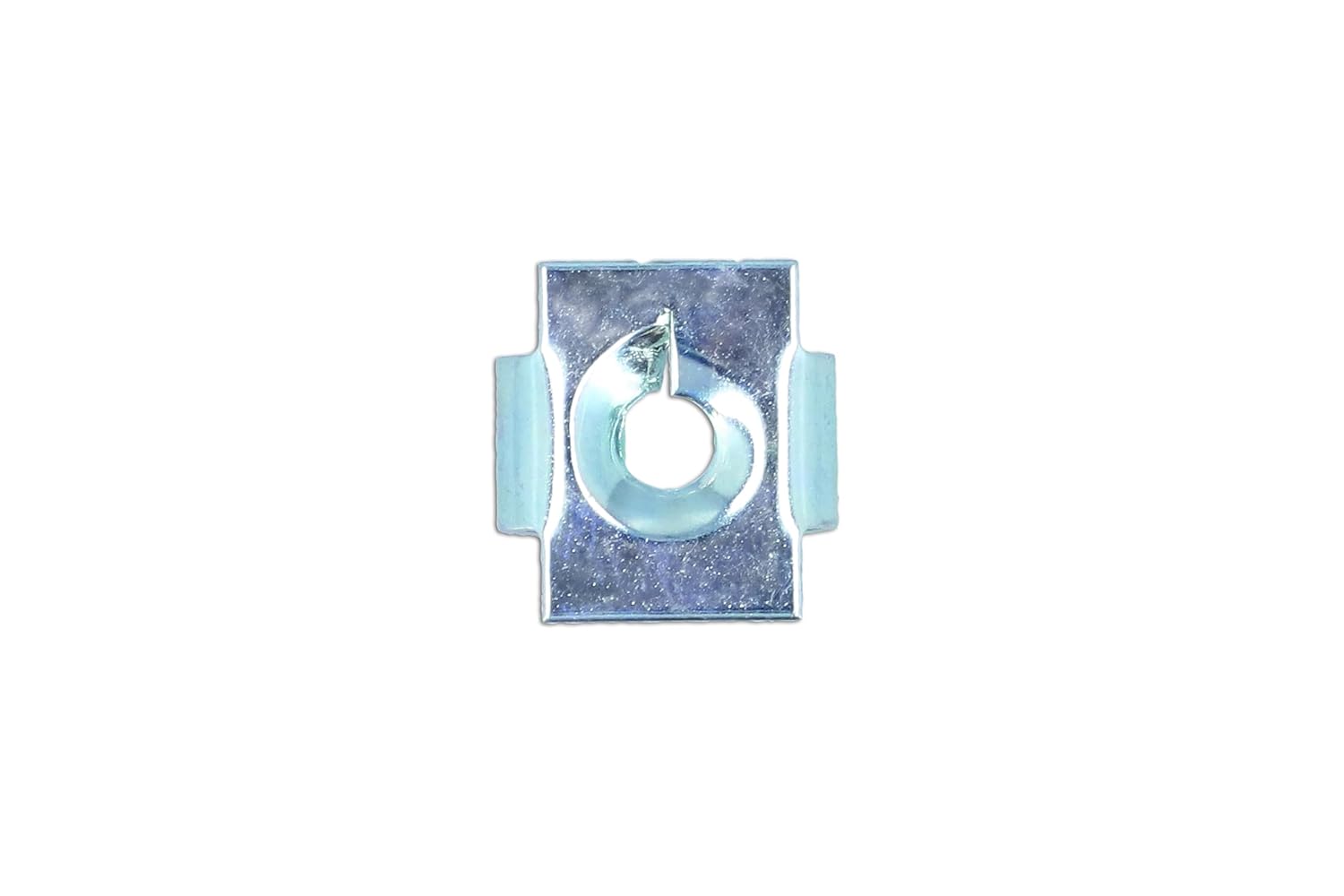

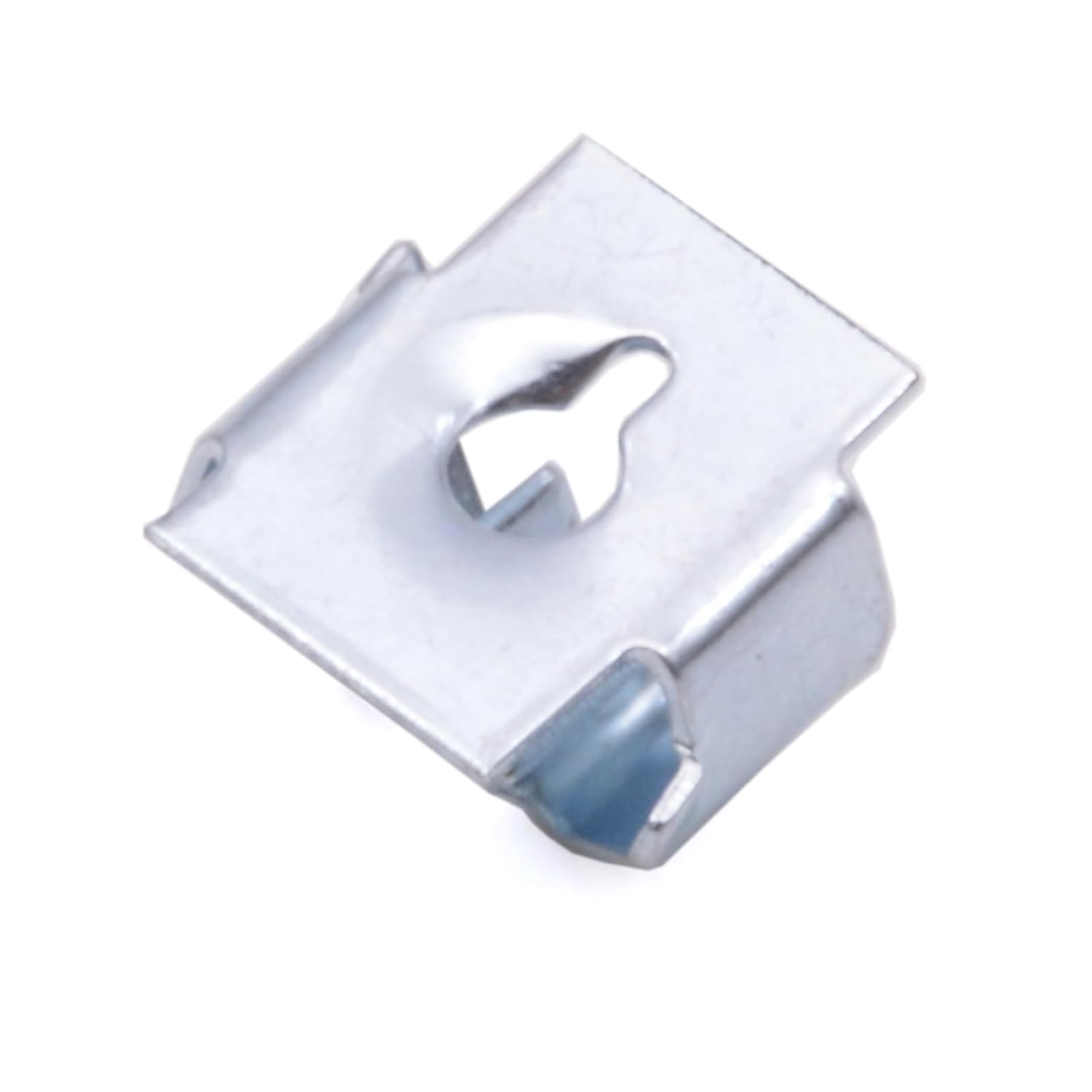

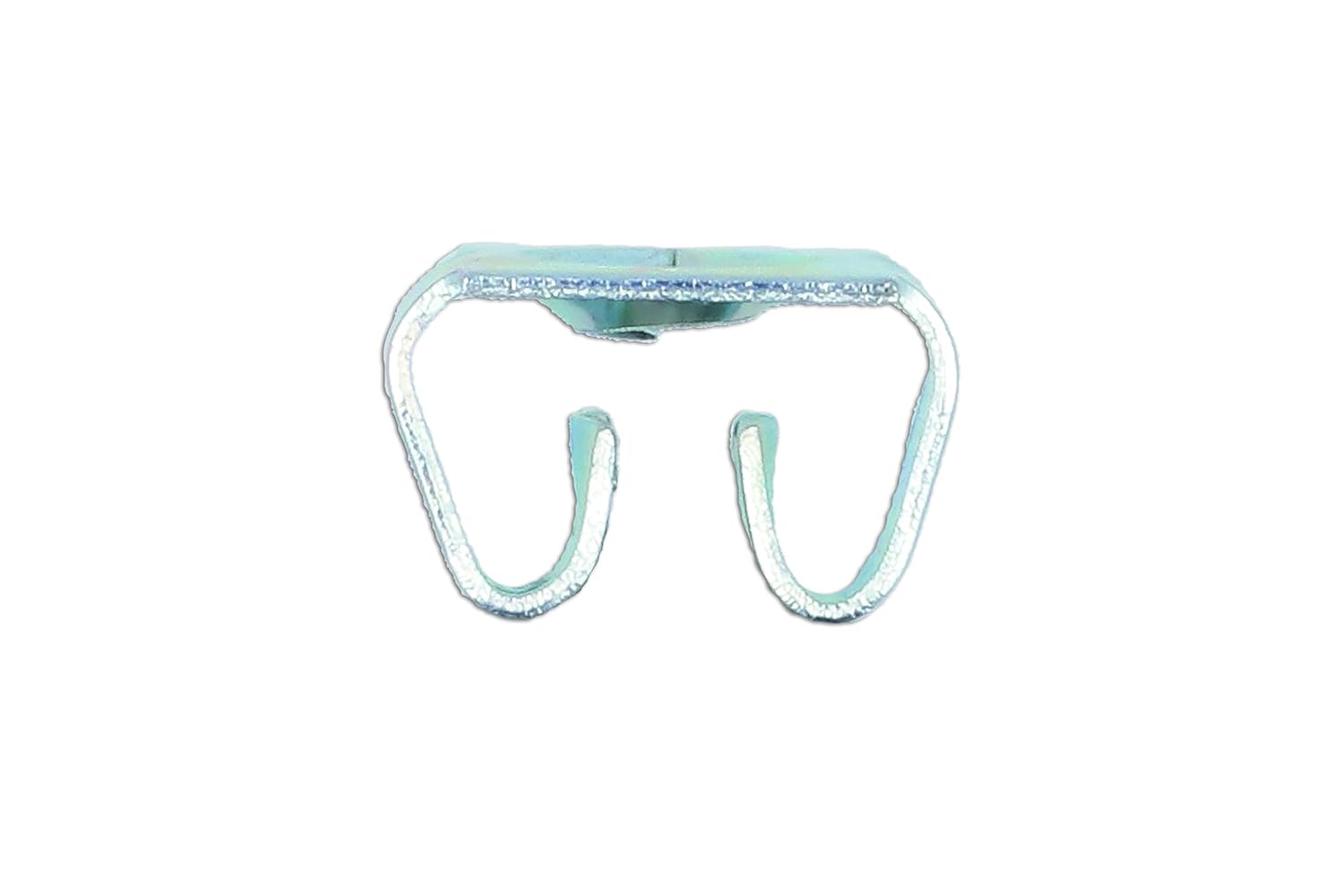

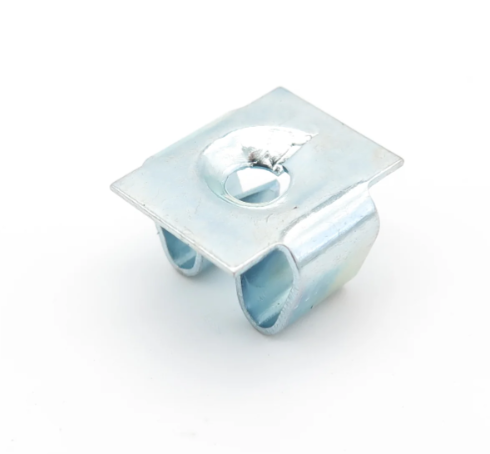

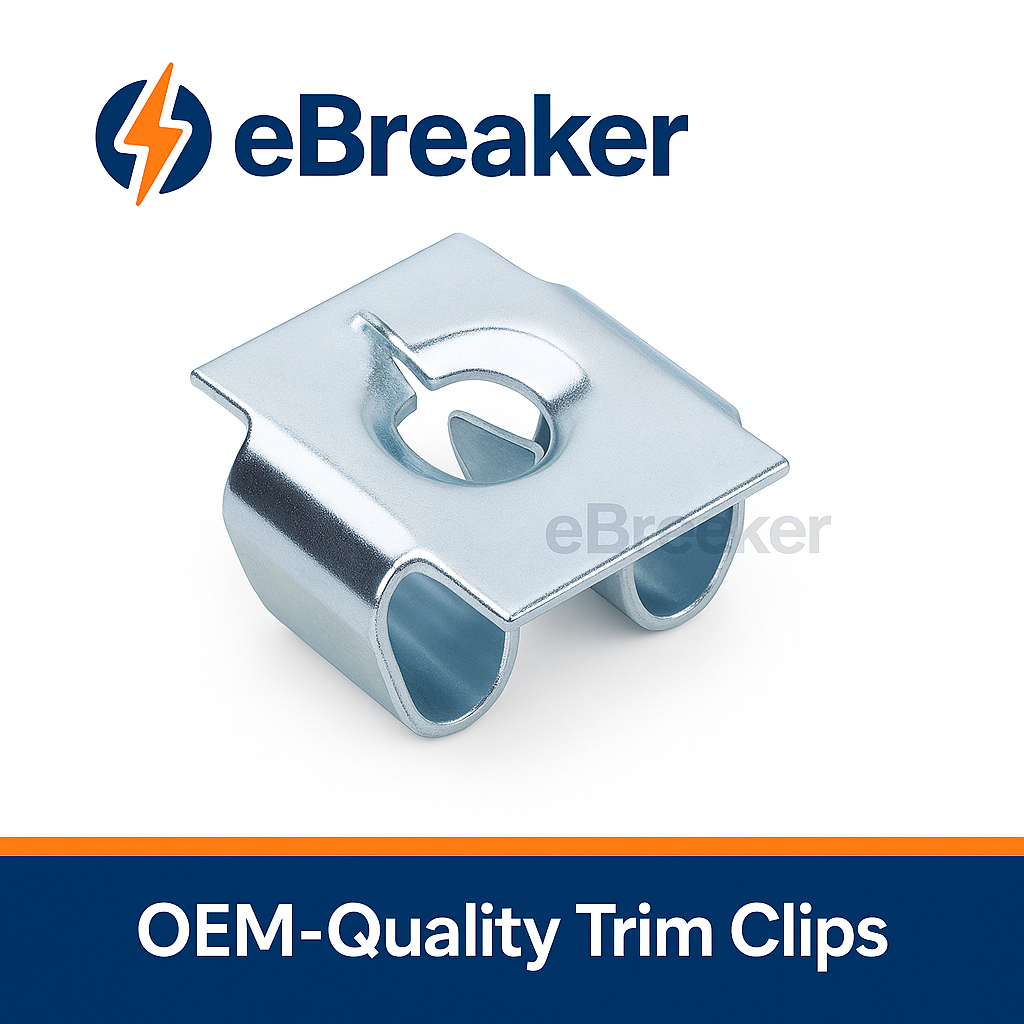

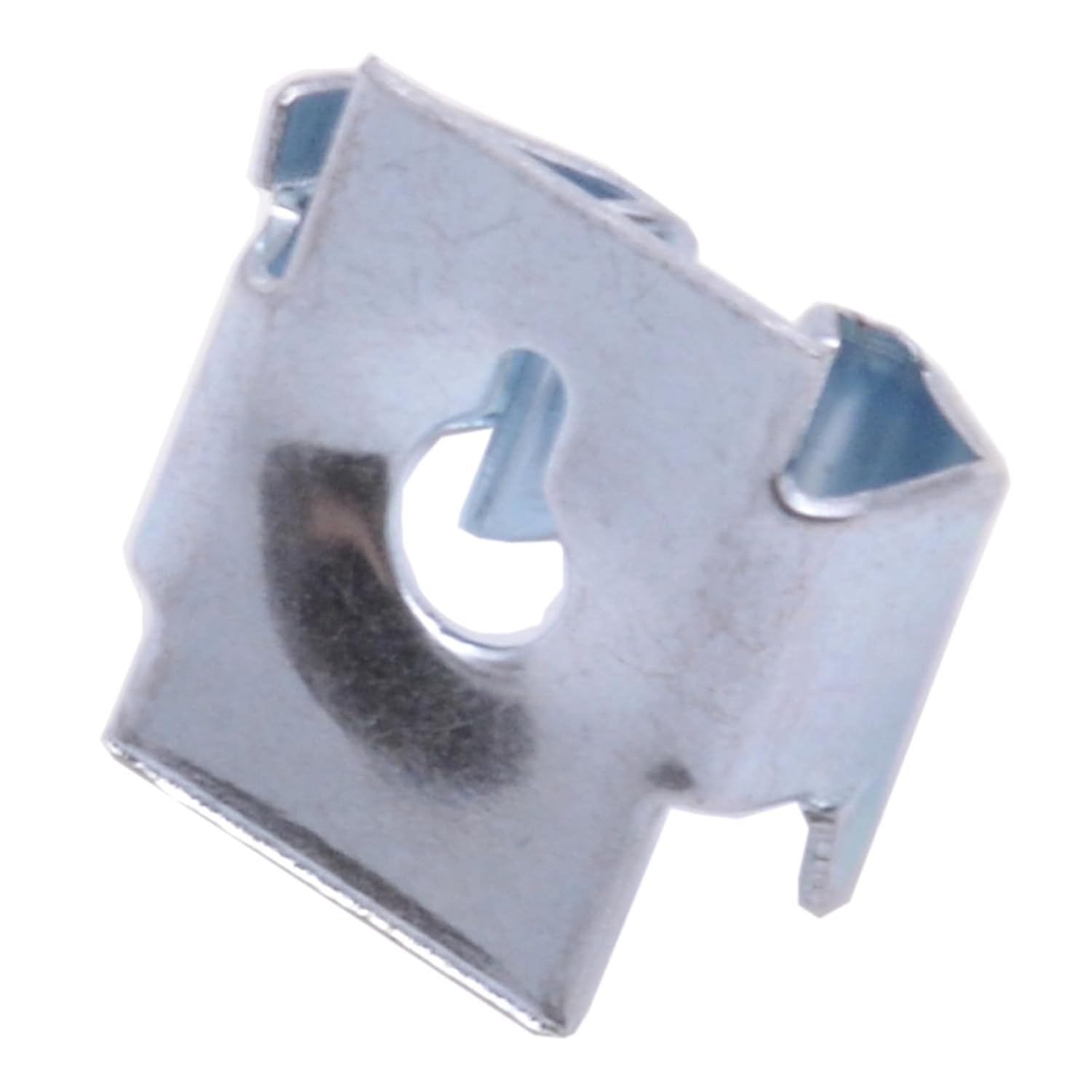

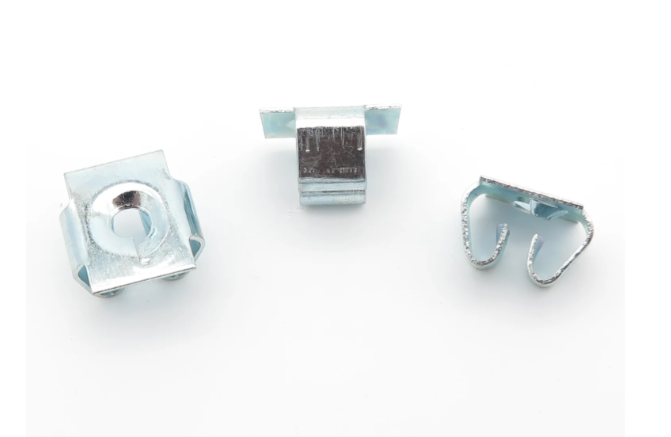

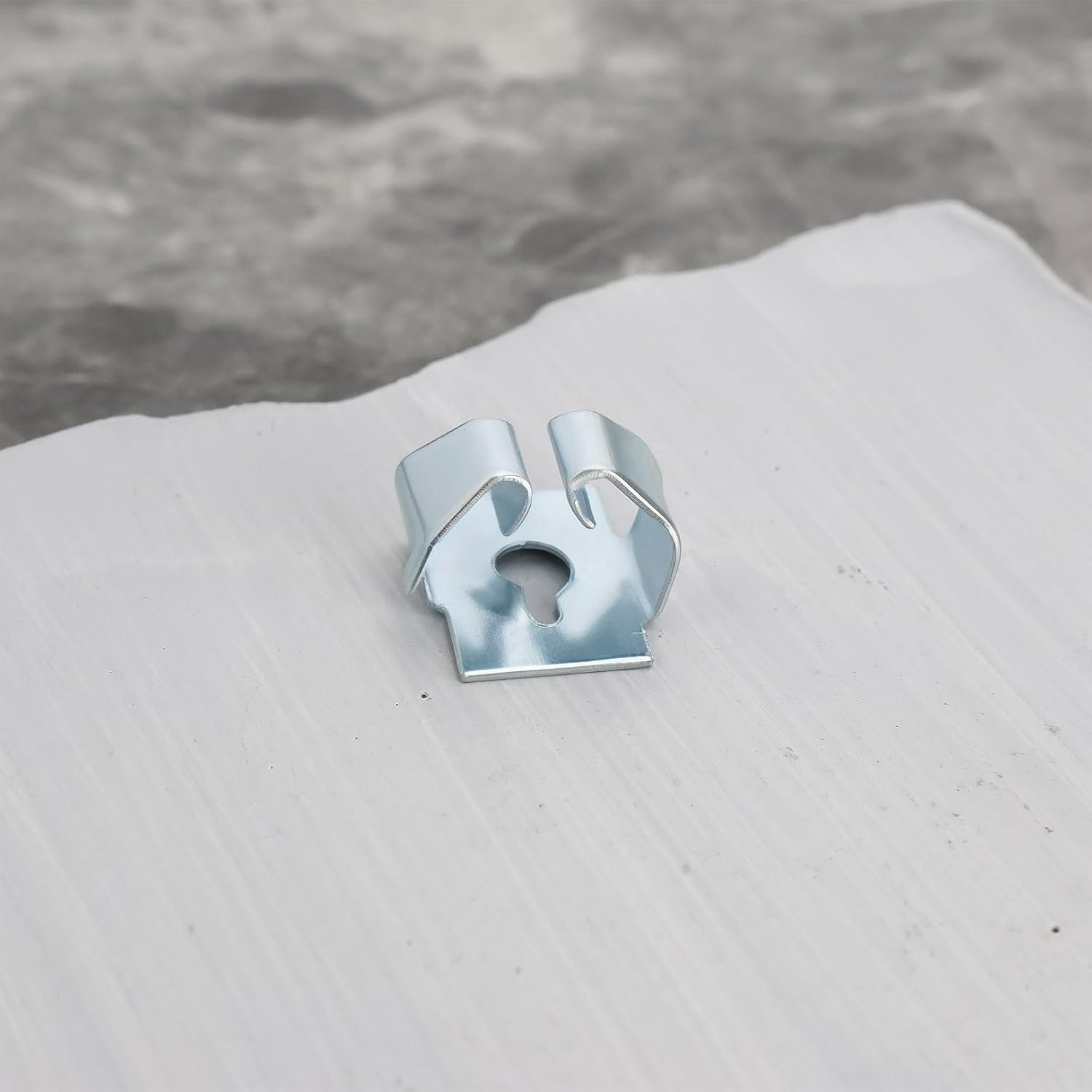

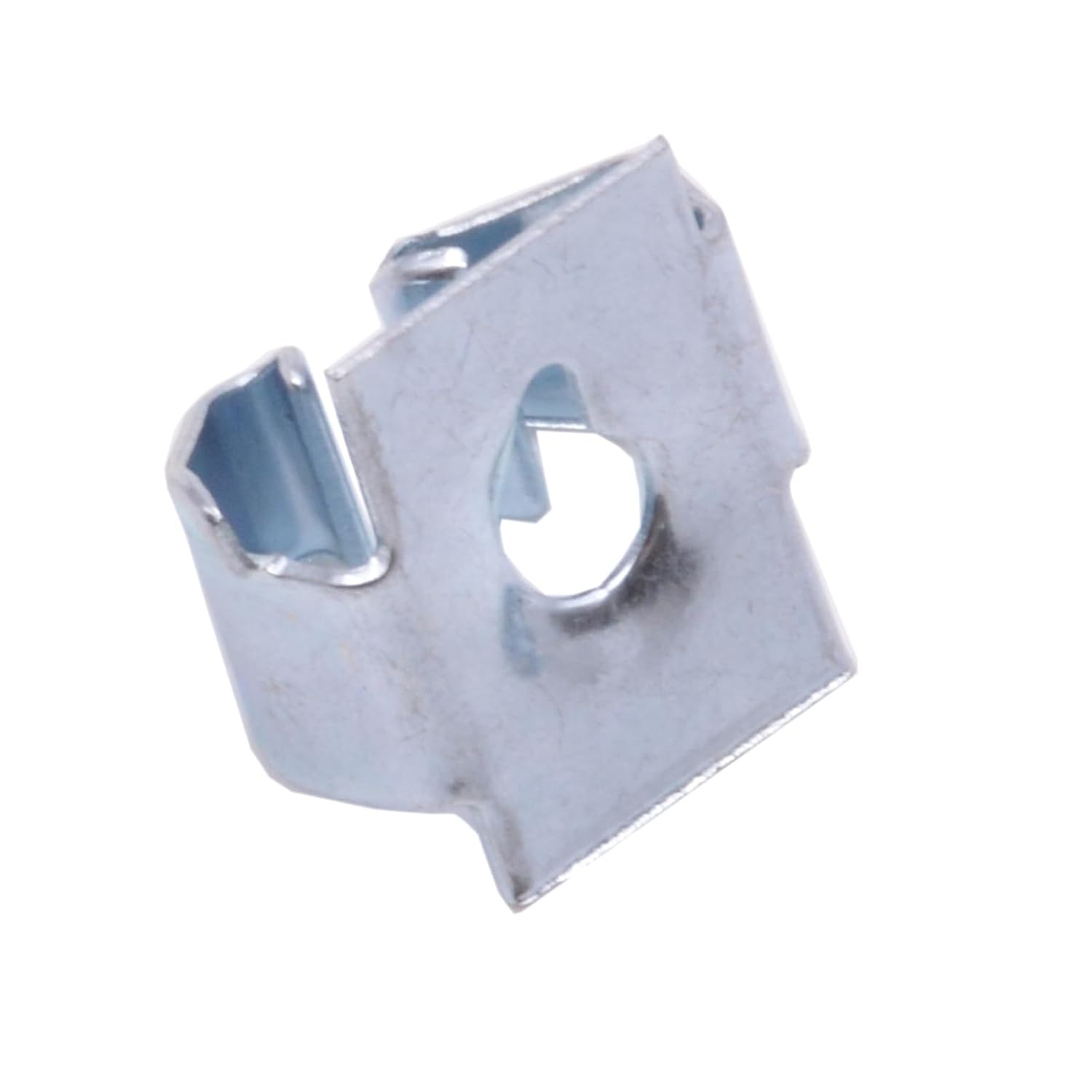

VAG M5 Wheel Arch Liner Speed Nut Clip

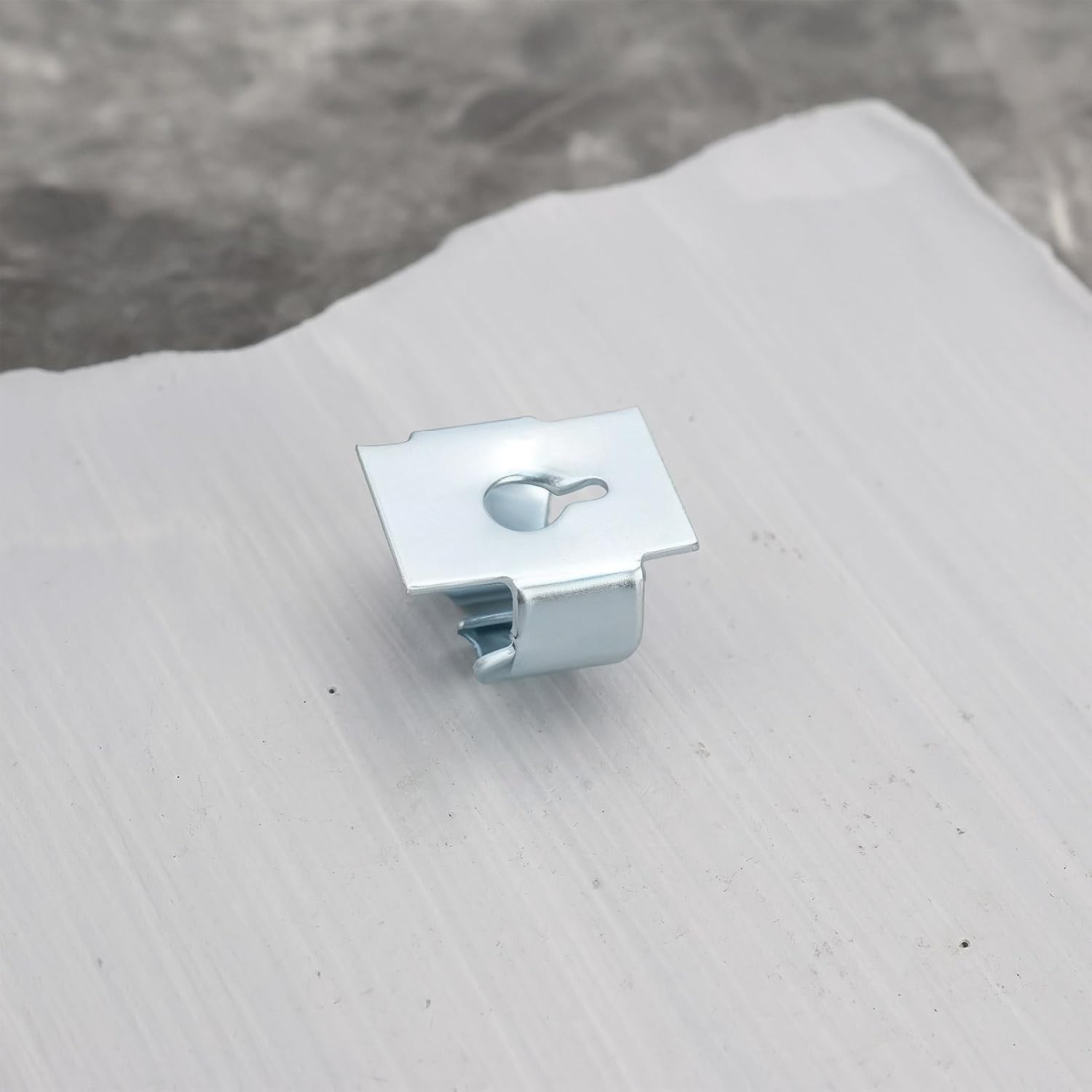

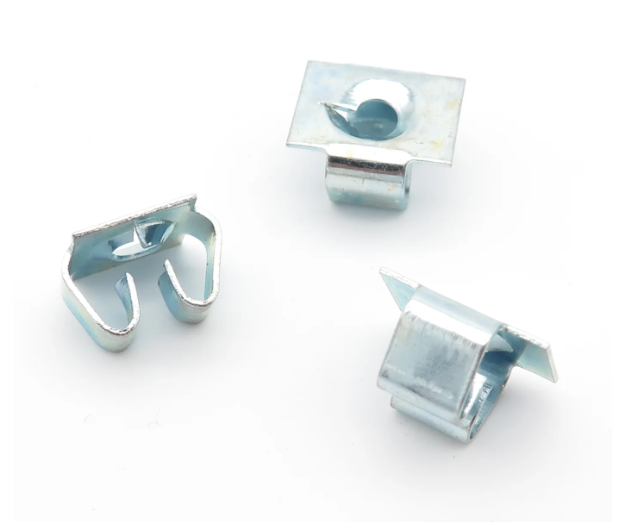

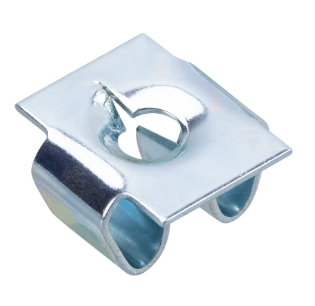

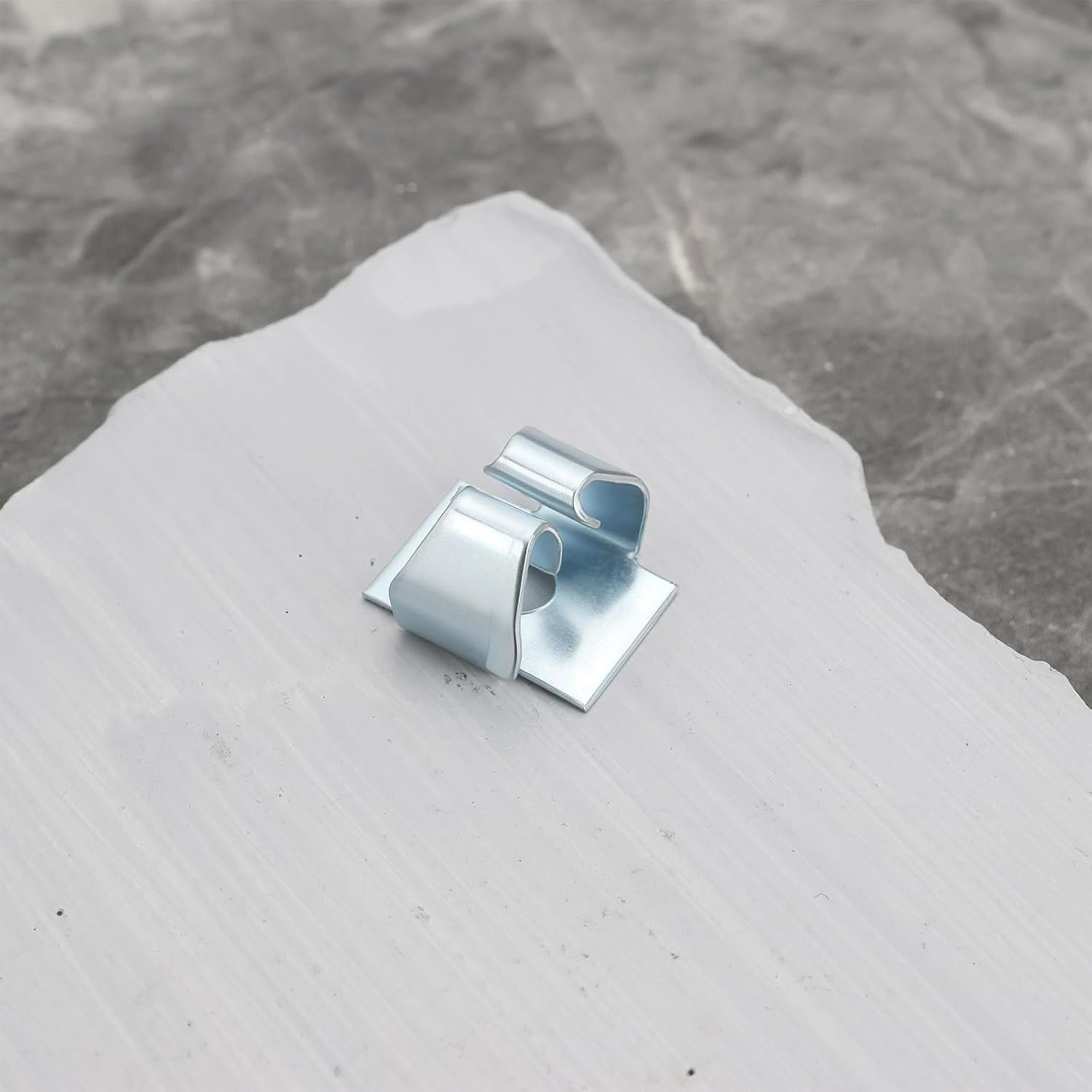

Metal speed nut / screw clip used on selected Volkswagen, Audi, Skoda and SEAT wheel arch liner, weather shield panel, underbody shield, side skirt and sill moulding fixing points. This clip is designed for use with an M5 screw and is supplied as an aftermarket replacement where the original clip shape, part number and measurements match.
Specification & Technical
| Part Type | Speed nut screw clip / panel retaining fastener |
| Used by Manufacturers | Volkswagen, Audi, Skoda, SEAT |
| Colour / Finish | Silver / zinc plated steel |
| Material | Steel |

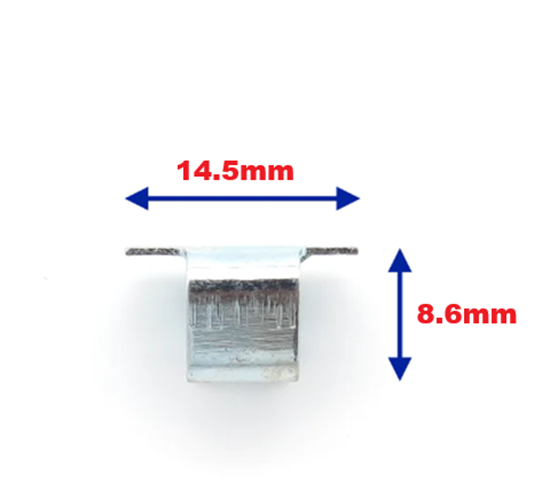

| Length | 14.5mm |
| Width | 10mm |
| Height | 8.6mm |
| Screw Size | M5 screw |

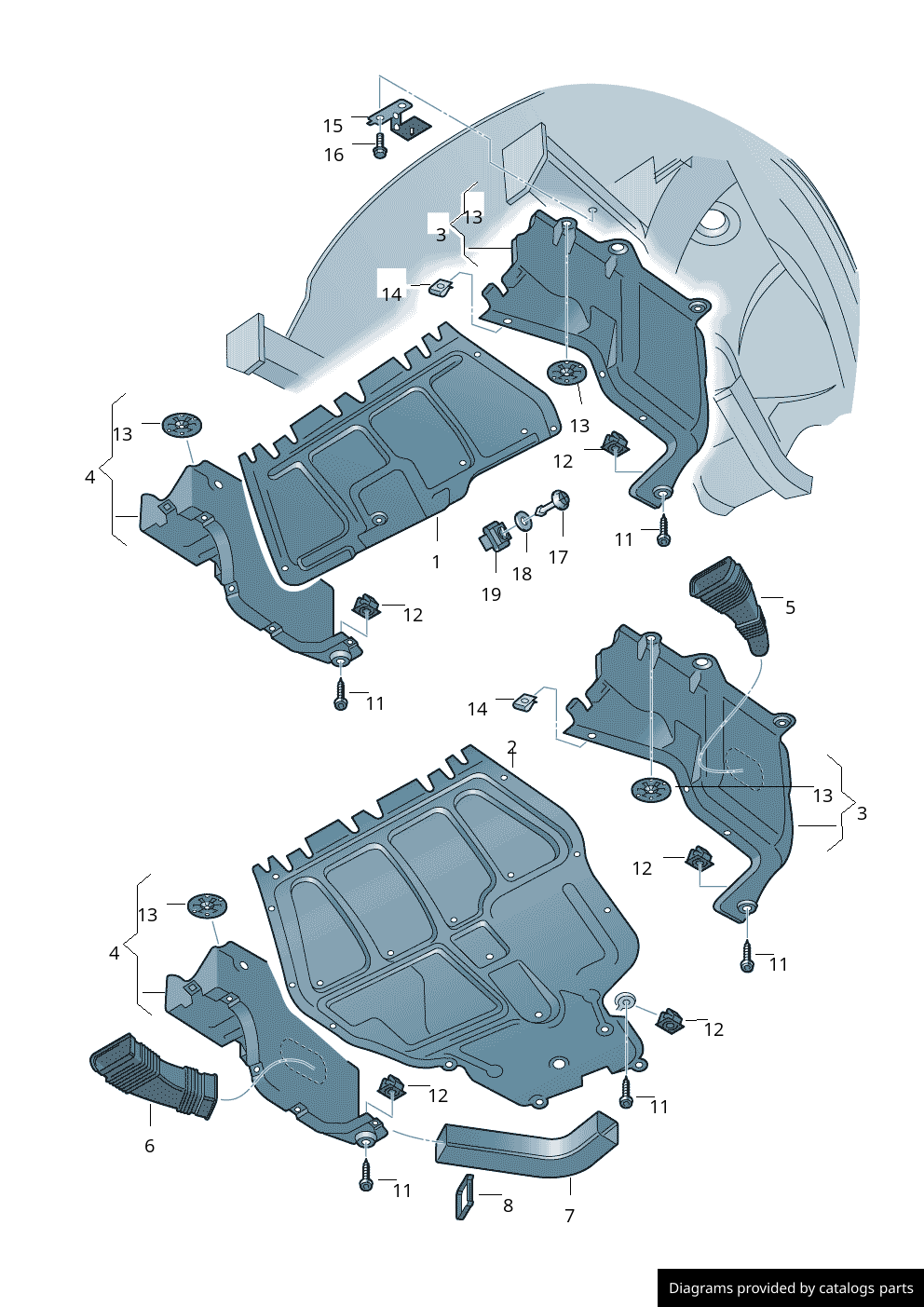

| Common Fitting Locations | Wheel arch liners, weather shield panels, side skirts, sill moulding covers, underbody shields and insulation panel fixing points |

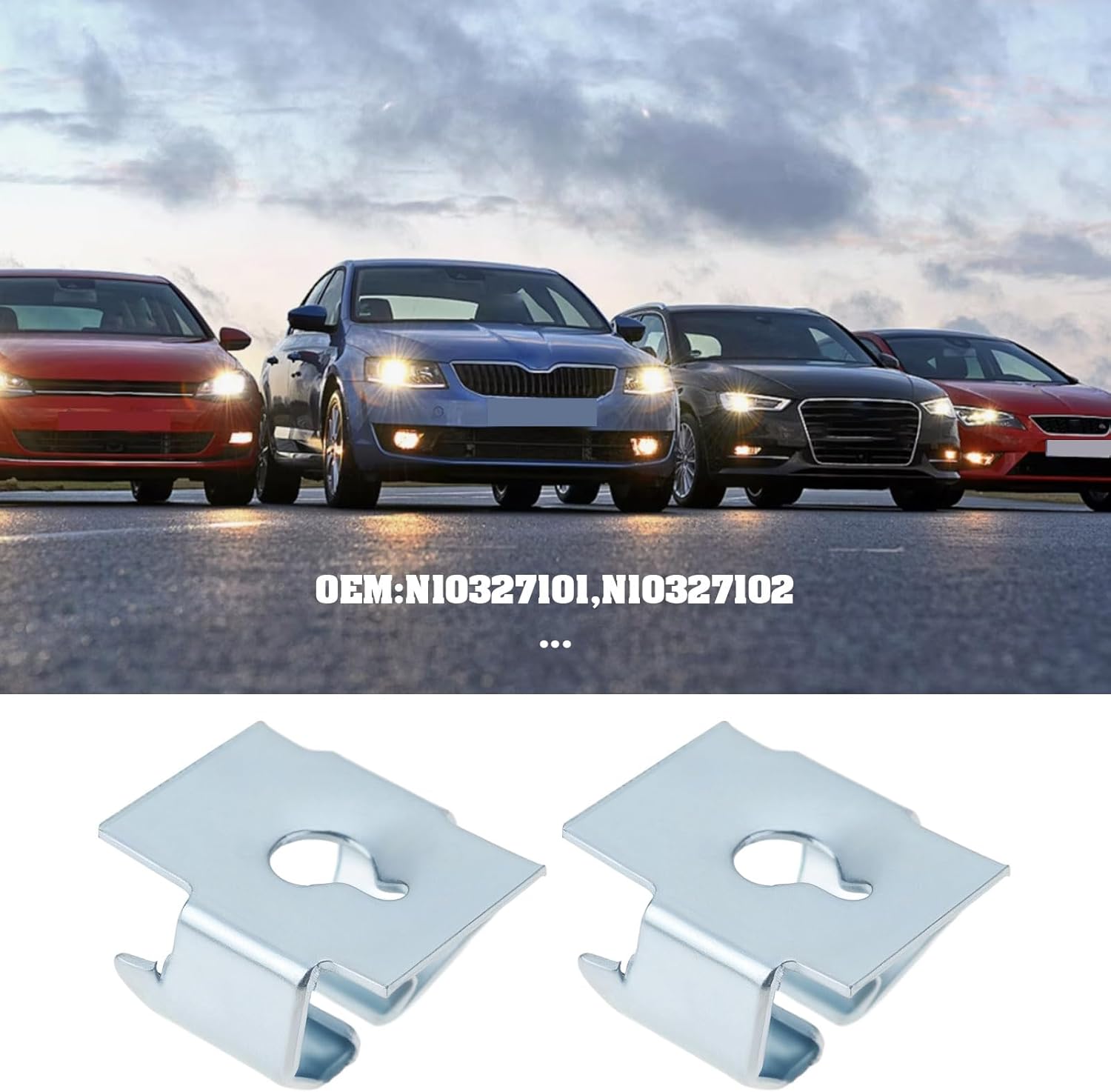

| Cross Reference Numbers | VW / Audi / Skoda / SEAT N10327101, VW / Audi / Skoda / SEAT N10327102, 11169, 39092, 30939092, 50267431, 161808, 861809135 |
Vehicle Compatibility Notes
Used on selected Audi models including A3 8L, TT 8N, A2 8Z, A1 8X and A1 Sportback applications.
Also listed for selected SEAT models including Ibiza, Cordoba, Toledo and Leon, plus selected Skoda Octavia and Fabia applications.
Additional fitment data links this speed nut to selected Volkswagen models including Polo, Golf IV Variant, Lupo, Bora and Touareg applications.
Please compare the part number, shape and measurements with your original clip before ordering. If unsure, send your registration or VIN and we will help check suitability where possible.
