If you own a Porsche 911 (996 or early 997), Boxster, or Cayman built between 1997 and 2008, the IMS bearing is something you need to understand. Not because we want to alarm you — but because being informed is the difference between a car you enjoy for years and an engine bill that exceeds the value of the car.
What Is the IMS Bearing and Why Does It Matter?
The intermediate shaft (IMS) has been a feature of Porsche's horizontally-opposed six-cylinder engine since 1965. Its job is to drive the camshafts indirectly off the crankshaft — reducing chain speed and improving chain longevity. In the aircooled Mezger-derived engines used in the Turbo, GT2, and GT3 models, the intermediate shaft runs on oil pressure-fed plain bearings that are effectively indestructible under normal conditions.
When Porsche introduced the water-cooled M96 engine with the Boxster in 1996 and the 911 996 in 1997, they made a significant change: the flywheel-side of the intermediate shaft was supported by a sealed ball bearing rather than a pressure-fed plain bearing. Porsche considered this bearing a lifetime component — they assigned it no part number, specified no service interval, and offered no replacement procedure.
That decision would prove costly for many owners.
Which Cars Are Affected?
All Porsche models fitted with the M96 or M97 engine from 1997 through 2008 share this design — that includes:
- Porsche 911 996 (1997–2005)
- Porsche 911 997 Gen 1 (2005–2008)
- Porsche Boxster 986 (1996–2004)
- Porsche Boxster / Cayman 987 Gen 1 (2005–2008)
Not affected: 996/997 Turbo, GT2, and GT3 models — these use the Mezger engine with oil-fed plain bearings on both ends of the intermediate shaft and do not share this problem.
From 2009 onwards, Porsche introduced the MA1 engine which drives the camshafts directly off the crankshaft — eliminating the intermediate shaft entirely. The problem was engineered out.
Not All IMS Bearings Are Equal — This Is Critical

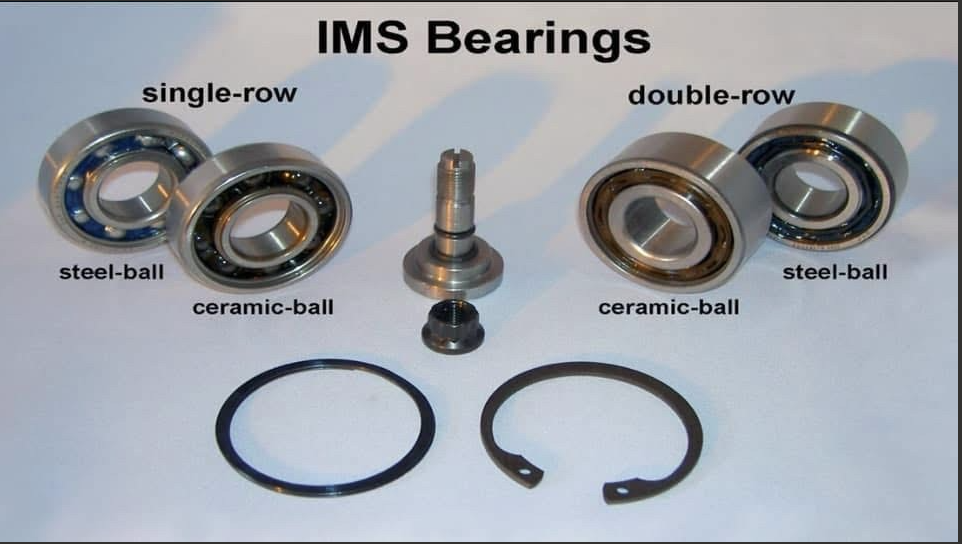

There were three distinct IMS bearing specifications used across the affected model years, and understanding which one your car has is essential before ordering any replacement kit:
1997–1999 — Dual Row Bearing
The original bearing. Stronger design with approximately twice the load capacity of what followed. Reported failure rate of around 1%. This is the bearing our Dual Row IMS Retrofit Kit is designed to replace.
2000–2005 — Single Row Bearing
Porsche phased in a smaller, single-row bearing with significantly reduced load capacity. This is the most problematic bearing — a reported failure rate of approximately 8% under warranty, and that figure only increases as these engines age. The good news: it is serviceable without full engine disassembly.
2006–2008 — Larger Non-Serviceable Bearing
Porsche increased the bearing diameter for the final M96/M97 generation, recovering much of the load capacity lost with the single-row unit. However, this bearing cannot be replaced without complete engine disassembly. The recommended approach for these cars is to have the grease seal removed from the bearing whenever the gearbox is out — allowing the sump oil to lubricate the bearing and extend its service life.
Important: Build year is a guide, not a guarantee. Some late 2005 builds left the factory with the larger 2006-spec bearing. Replacement engines fitted by Porsche will carry whatever bearing was current at the time of manufacture. The only reliable way to confirm which bearing your car has is gearbox-off visual inspection.
⚠️ Please Read Before Ordering
Our Dual Row IMS Retrofit Kit is designed for 1997–2005 engines with the serviceable bearing — but year of manufacture alone does not confirm this.
Do not order speculatively and have a kit waiting on the shelf before you have confirmed which bearing your car has. The dual row and single row bearings are not interchangeable. Ordering the wrong kit causes unnecessary delays for everyone involved.
If you are not yet in a position to confirm the bearing type, we strongly recommend waiting until you can. If in doubt, consult a qualified Porsche specialist before proceeding.
Why Replace It Proactively?
This is the single most important point: IMS bearing replacement is preventative maintenance — not a repair option.
Once a bearing fails, the consequences are severe. The failure generates metallic debris that circulates through the entire engine. Cam timing can be lost, leading to valve-to-piston contact. In most cases, complete engine rebuild or replacement is the only outcome — and the failed engine may not even be accepted as a core, adding further cost.
The single-row bearing in particular can go from showing no symptoms to complete failure with no warning. Oil analysis cannot reliably detect IMS wear debris — particle sizes are too large for standard analysis to identify. An oil filter inspection may show nothing right up until the point of failure.
The only sensible approach is replacement before failure occurs.
Installation Overview
IMS bearing replacement requires gearbox removal to access the bearing. Most workshops carry out this work alongside a clutch replacement and rear main seal (RMS) service — combining these jobs saves significant labour and makes sound financial sense.
The job involves:
- Gearbox removal (engine-out is not strictly necessary but some workshops prefer it)
- Clutch and flywheel removal
- Extraction of the original IMS bearing using the correct specialist tooling
- Inspection of the IMS housing
- Installation of the new bearing and seal
- Reassembly
Estimated labour time: 10–14 hours depending on model and workshop setup. Tiptronic models require both engine and transmission to be dropped, adding time.
This is not a job for the unprepared. Specialist tools are required. If you have any doubt about the specification required or the procedure involved, please consult a qualified Porsche specialist before proceeding.
Frequently Asked Questions
Q: My car is a 2003 996 — does it definitely have the single-row bearing?
A: Almost certainly yes, but the only way to be certain is gearbox-off visual inspection. Build year is a strong indicator, not a guarantee.
Q: Can I wait until I hear a noise before replacing it?
A: No. The single-row bearing in particular can fail catastrophically with no audible warning. By the time symptoms appear, the damage is already done.
Q: What about oil analysis — won't that tell me if the bearing is failing?
A: Unfortunately not reliably. IMS wear debris particles are too large to be detected by standard used oil analysis. Filter inspection can help, but a bearing can go from clean to failed very quickly.
Q: My car is a 2007 997 — can I fit this kit?
A: No. 2006–2008 cars have the larger non-serviceable bearing which cannot be replaced without full engine disassembly. The recommended approach for your car is grease seal removal when the gearbox is next out.
Q: Should I combine this with a clutch replacement?
A: It makes good sense to consider it — the gearbox has to come out regardless, so if your clutch is getting on in miles, combining the jobs saves you a significant amount in labour. A rear main seal at the same time is also worth factoring in while everything is apart.
Q: Is this a repair for a bearing that has already failed?
A: No. If your engine has already suffered an IMS failure, bearing replacement is not possible — debris contamination means the engine requires a full rebuild. This kit is for proactive, preventative replacement only.
Shop by Bearing Type
Once you've confirmed which bearing your car has, you can order with confidence:
- 👉 IMS Bearing Replacement — Dual Row Kit → (1997–1999 engines)
- 👉 IMS Bearing Replacement — Single Row Kit → (2000–2005 engines)
Not sure which you need? Get in touch before ordering.
While You're At It — Related Protection for Your M96 Engine
For Porsche 996 / 986 owners — Upgraded Oil Pressure Relief Piston
The M96 engine's oil pressure relief piston is another known weak point on early cars. Upgrading to the improved 997-spec unit is straightforward preventative maintenance that improves cold-start oil pressure — exactly what an ageing water-cooled Porsche engine needs.
👉 996 / 986 Upgraded Oil Pressure Piston Cold Start Kit →
Not ready to commit yet? Start here.
If you're keeping an eye on things while you plan the IMS job, a PSR9Line magnetic sump plug is a sensible first step — trapping ferrous particles in the oil before they circulate and giving you an early warning system you can check at every oil change.
👉 Porsche Magnetic Sump Plug — M96 / M97 →
